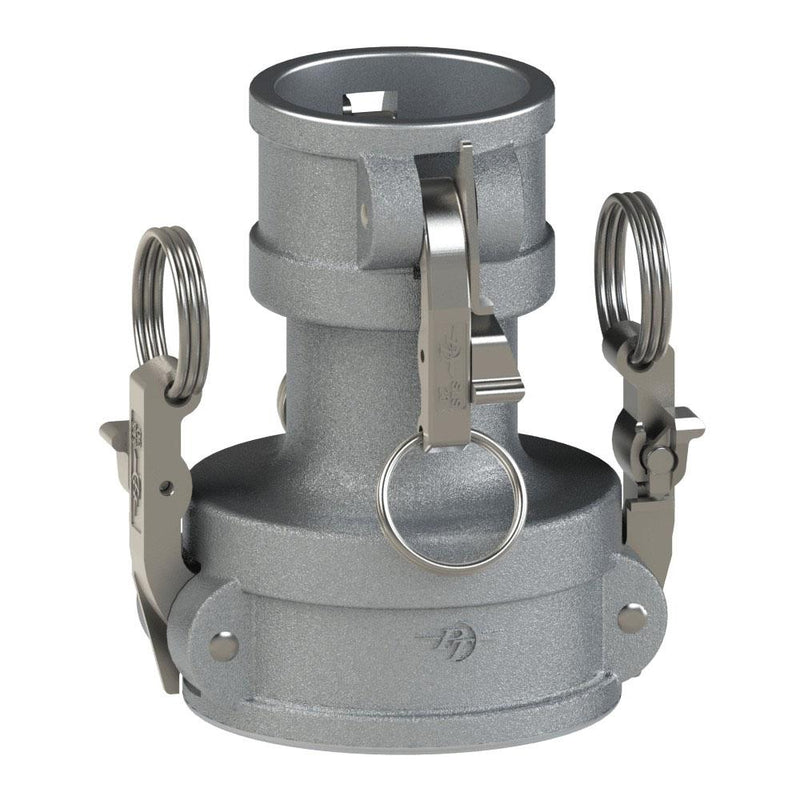

60272020L2 (20CX20C SLII) by PT-Coupling | STA-LOK® II Cam & Groove Spool Coupler | Type CXC | 2" Coupler x 2" Coupler | Aluminum | Buna-N Seal

Save $63.62

$171.38

$171.38 - $171.38

$171.38

$107.76

$107.76 - $107.76

$107.76

PT Coupling
STA-LOK® II Cam & Groove (Camlock) Spool Coupler | Type CXC | Coupler x Coupler | Aluminum | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 60272020L2 PT-Coupling
Series:	STA-LOK II
Shape (Orientation):	Straight
Cam Type:	Other
Ends Configuration:	2in Female Cam & Groove, 2in Female Cam & Groove, Some Ends Match
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile

Overview:
STA-LOK® II is a passive locking feature that automatically locks the handle into place, if it is fully closed. To open the handles there are manual quick release levers. Proper use of this mechanism can help prevent spills by keeping the cam arms from opening under adverse conditions, such as high vibrations, pulsing, wear, and hazardous materials. STA-LOK® II couplers meet the Coast Guard ASTM 1122-87 specifications for Quick Disconnect Couplers.
Features & Applications:
Pins, rings & the lock plate in STA-LOK® II couplings are 300 series Stainless Steel. Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA

Part Name	Item #	Coupler Size	Coupler Size	Max. Allowable Working Press. (PSI)*
20CX20C SLII	60272020L2	2"	2"	250 PSI
30CX20C SLII	60273020L2	3"	2"	200 PSI
30CX30C SLII	60273030L2	3"	3"	200 PSI
40CX30C SLII	60274030L2	4"	3"	150 PSI
40CX40C SLII	60274040L2	4"	4"	150 PSI

** Denotes parts are produced as a welded fabrication.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
