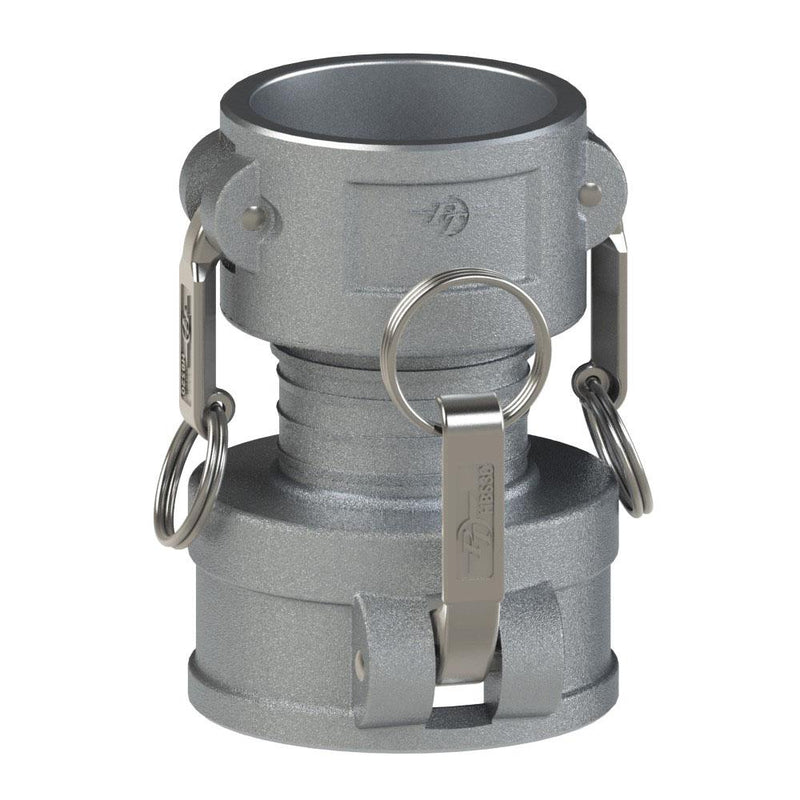

60274040 (40CX40C) by PT-Coupling | Cam & Groove Adapter | Spool Coupler | Type CXC | 4" Coupler x 4" Coupler | Aluminum/HBS | Buna-N Seal

60274040 (40CX40C) by PT-Coupling | Cam & Groove Coupler | Spool Coupler | Type CXC | 4" Coupler x 4" Coupler | Aluminum/HBS | Buna-N Seal

Save $56.58

$152.42

$152.42 - $152.42

$152.42

$95.84

$95.84 - $95.84

$95.84

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 60274040 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Other
Ends Configuration:	4in Female Cam & Groove, 4in Female Cam & Groove, Some Ends Match
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
HBS cam arms are made of 300 series Stainless Steel. Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA

Part Name	Item #	Coupler Size	Coupler Size	Max. Allowable Working Press. (PSI)*
10CX10C	60271010	1"	1"	250 PSI
15CX15C	60271515	1-1/2"	1-1/2"	250 PSI
20CX20C	60272020	2"	2"	250 PSI
25CX25C	60272525	2-1/2"	2-1/2"	200 PSI
30CX20C	60273020	3"	2"	200 PSI
30CX30C	60273030	3"	3"	200 PSI
40CX30C	60274030	4"	3"	150 PSI
40CX40C	60274040	4"	4"	150 PSI

** Denotes parts are produced as welded fabrication.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
