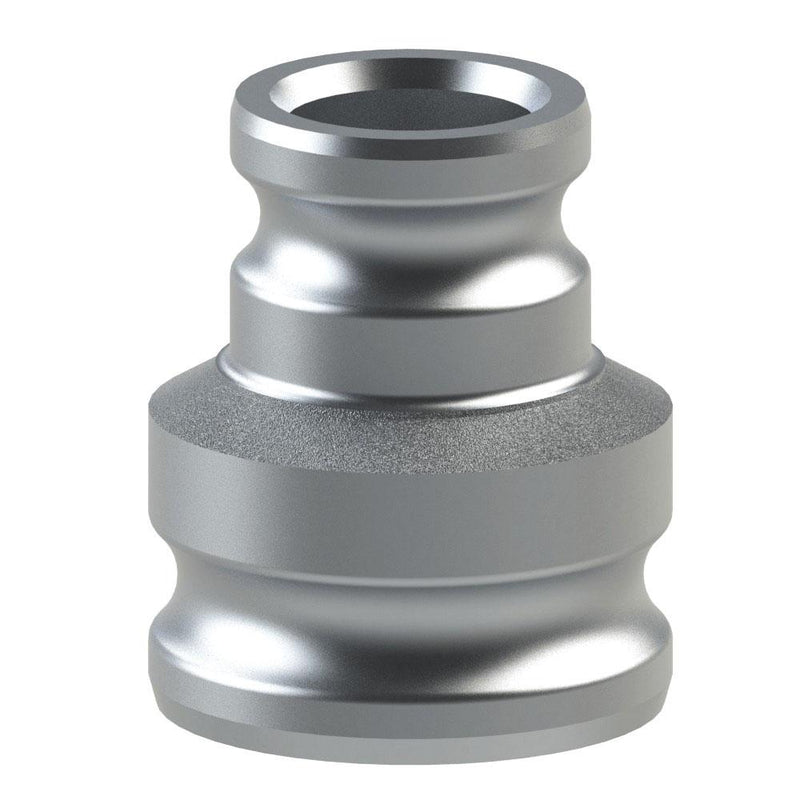

60282530 (SA25X30) by PT-Coupling | Reducing Cam & Groove Adapter | Spool Adapter | Type SA | 2-1/2" Adapter x 3" Adapter | Aluminum

Save $37.59

$101.28

$101.28 - $101.28

$101.28

$63.69

$63.69 - $63.69

$63.69

PT Coupling
Cam & Groove (Camlock) Adapter | Spool Adapter | Type SA | Adapter x Adapter | Aluminum

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 60282530 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Other
Ends Configuration:	2-1/2in Male Cam & Groove, 3in Male Cam & Groove
Material(s):	Aluminum

Features & Applications:
Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA

Part Name	Item #	Adapter Size	Adapter Size	Max. Allowable Working Press. (PSI)*
SA07X07	60280707	3/4"	3/4"	250 PSI
SA10X07	60281007	1"	3/4"	250 PSI
SA10X10	60281010	1"	1"	250 PSI
SA10X15	60281015	1"	1-1/2"	250 PSI
SA12X12	60281212	1-1/4"	1-1/4"	250 PSI
SA12X15	60281215	1-1/4"	1-1/2"	250 PSI
SA15X15	60281515	1-1/2"	1-1/2"	250 PSI
SA15X20	60281520	1-1/2"	2"	250 PSI
SA15X40	60281540	1-1/2"	4"	150 PSI
SA20X20	60282020	2"	2"	250 PSI
SA20X25	60282025	2"	2-1/2"	200 PSI
SA20X30	60282030	2"	3"	200 PSI
SA25X25	60282525	2-1/2"	2-1/2"	200 PSI
SA25X30	60282530	2-1/2"	3"	200 PSI
SA30X15	60283015	3"	1-1/2"	200 PSI
SA30X30	60283030	3"	3"	200 PSI
SA30X40	60283040	3"	4"	150 PSI
SA40X20	60284020	4"	2"	150 PSI
SA40X40	60284040	4"	4"	150 PSI
SA50X40	60285040	5"	4"	75 PSI
SA50X50	60285050	5"	5"	75 PSI
SA60X30	60286030	6"	3"	75 PSI
SA60X40	60286040	6"	4"	75 PSI
SA60X60	60286060	6"	6"	75 PSI

** Denotes parts are produced as welded fabrication.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
