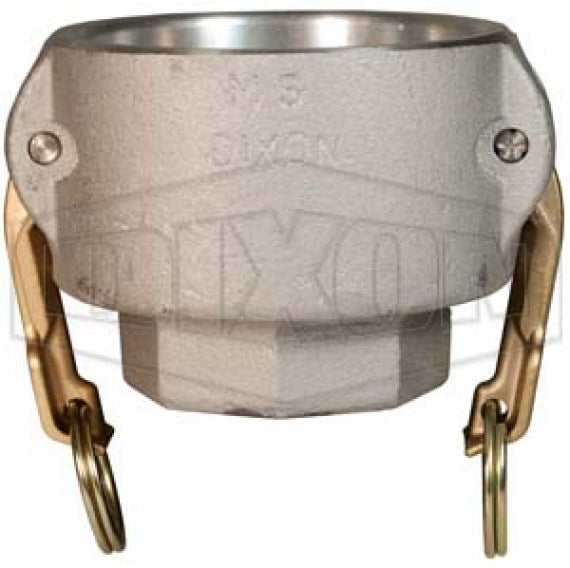

6040-D-AL by Dixon Valve | Cam & Groove Reducer (Jump Size) Coupler | Type D | 6" Coupler x 4" Female NPT | Aluminum

Name: 6040-D-AL by Dixon Valve | Cam & Groove Reducer (Jump Size) Coupler | Type D | 6" Coupler x 4" Female NPT | Aluminum
Brand: Dixon
SKU: 6040-D-AL Dixon
Price: 291.59 USD
Availability: InStock

Save $194.39

$485.98

$485.98 - $485.98

$485.98

$291.59

$291.59 - $291.59

$291.59

Dixon Valve
Cam & Groove Reducer (Jump Size) Coupler | Type D | Coupler x Female NPT

Designed for use with liquids.

Specifications for Variant SKU: 6040-D-AL Dixon
Shape (Orientation):	Straight
Cam Type:	Type D
Ends Configuration:	6in Female Cam & Groove, 6in Female NPT
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile Rubber

Features:
Precision machined to rigid tolerances. Stainless pins will not rust or bind, providing great strength and safety. Recess holds gasket firmly in place - ensures proper placement.
Construction:
Nitrile Rubber gasket. Durable stainless steel cam arm pins.
Safety Notes:
Under no circumstances should cam and groove couplings be used for compressed air or steam service! Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down. Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
Produced to interchange with all product produced to Commercial Item Description A-A-59326D.

356T6 Aluminum Part Number	Brass Part Number	316 Stainless Steel Part Number	Size Coupler x Female NPT	Maximum Operating Pressure
1510-D-AL	-	1510-D-SS*	1-1/2" x 1"	250 PSI
2015-D-AL	-	2015-D-SS	2" x 1-1/2"	250 PSI
3020-D-AL	-	3020-D-SS	3" x 2"	125 PSI
4030-D-AL	4030-D-BR	4030-D-SS*	4" x 3"	100 PSI
5040-D-AL*	-	-	5" x 4"	75 PSI
6040-D-AL*	-	-	6" x 4"	75 PSI

* Parts are produced as a welded fabrication.
