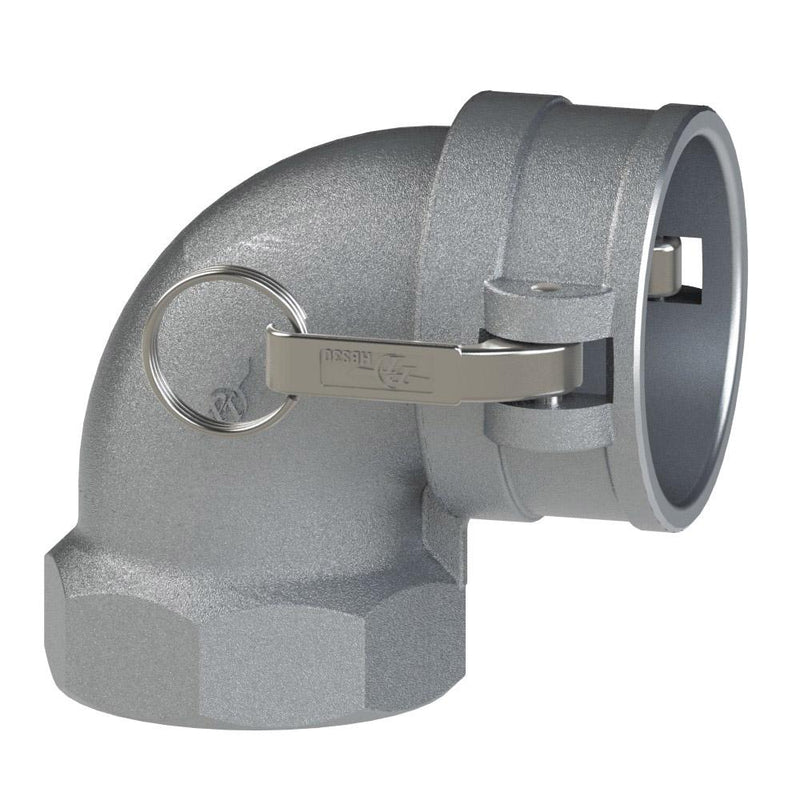

60482000 (20LD) by PT-Coupling | Cam & Groove Adapter | Type LD | 90° Elbow | 2" Coupler x 2" Female NPT | Aluminum/HBS | Buna-N Seal

Save $29.95

$80.68

$80.68 - $80.68

$80.68

$50.73

$50.73 - $50.73

$50.73

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 60482000 PT-Coupling
Shape (Orientation):	90 Degree Elbow
Cam Type:	Type D
Ends Configuration:	2in Female Cam & Groove, 2in Female NPT
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
HBS cam arms are made of 300 series Stainless Steel. Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA

Part Name	Item #	Orientation	Coupler Size	Female NPT Thread	Max. Allowable Working Press. (PSI)*
10LD	60481000	90°	1"	1"	250 PSI
15LD	60481500	90°	1-1/2"	1-1/2"	250 PSI
20LD	60482000	90°	2"	2"	250 PSI
25LD	60482500	90°	2-1/2"	2-1/2"	200 PSI
30LD	60483000	90°	3"	3"	200 PSI
40LD	60484000	90°	4"	4"	150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
