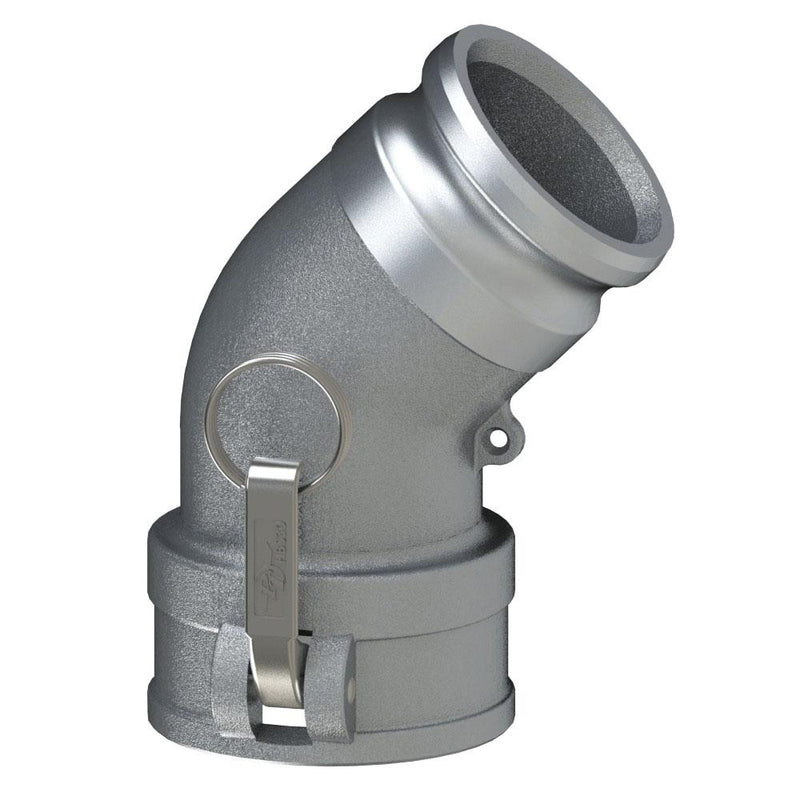

60504145 (40CAL-45 Deg) by PT-Coupling | Cam & Groove Adapter | Type CAL | 45° Elbow | 4" Coupler x 4" Adapter | Aluminum/HBS | Buna-N Seal

60504145 (40CAL-45 Deg) by PT-Coupling | Cam & Groove Coupler | Type CAL | 45° Elbow | 4" Coupler x 4" Adapter | Aluminum/HBS | Buna-N Seal

Save $95.67

$257.72

$257.72 - $257.72

$257.72

$162.05

$162.05 - $162.05

$162.05

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 60504145 PT-Coupling
Shape (Orientation):	45 Degree Elbow
Cam Type:	Other
Ends Configuration:	4in Female Cam & Groove, 4in Male Cam & Groove
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
HBS cam arms are made of 300 series Stainless Steel. Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA

Part Name	Item #	Orientation	Coupler Size	Adapter Size	Max. Allowable Working Press. (PSI)*
20CAL	60502120	90°	2"	2"	250 PSI
30CAL	60503130	90°	3"	3"	200 PSI
30CAL-45	6050313045	45°	3"	3"	200 PSI
40CAL	60504140	90°	4"	4"	150 PSI
40CAL-45	60504145	45°	4"	4"	150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
