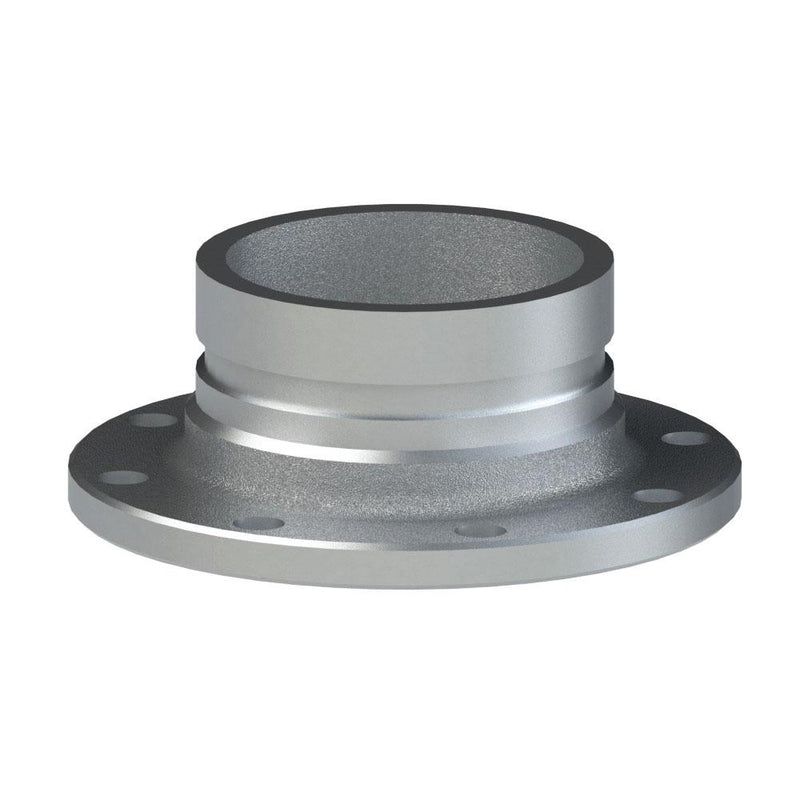

60514000VG (TTF40VG) by PT-Coupling | Flanged Single Groove Adapter | Type TTFVG | 4" Single Groove x TTMA Flange Victaulic Fitting | Aluminum

60514000VG (TTF40VG) by PT-Coupling | Flanged Single Groove Adapter | Type TTFVG | 4" Single Groove x TTMA Flange Victaulic Fitting | Aluminum

Save $56.13 Save $56.13
$151.22
$151.22 - $151.22
$151.22
$95.09
$95.09 - $95.09
$95.09

PT Coupling
Flanged Single Groove Adapter | Type TTFVG | Single Groove x TTMA Flange Victaulic Fitting | Aluminum

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 60514000VG PT-Coupling
Shape (Orientation): Straight
Ends Configuration: 4in Grooved End, 4in TTMA Flange
Material(s): Aluminum
Overview:
  • PT Coupling's petroleum handling fittings are used in all phases of petroleum manufacturing, transportation and logistics. They serve important roles in fuel transportation, from refining applications to tank trucks, and much more. They are also suited to work with the emerging bio-fuel industry.
Features & Applications:
  • Tank Truck Flanges conform to (TTMA) Truck Trailer Manufacturers Assoc. standards.
  • Aluminum:
    • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
    • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA.
Part
Name		 Item # Material Size Max. Allowable
Working Press.
(PSI)*
TTF30VG 60513000VG Aluminum 3" 200 PSI
TTF40VG 60514000VG Aluminum 4" 150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
