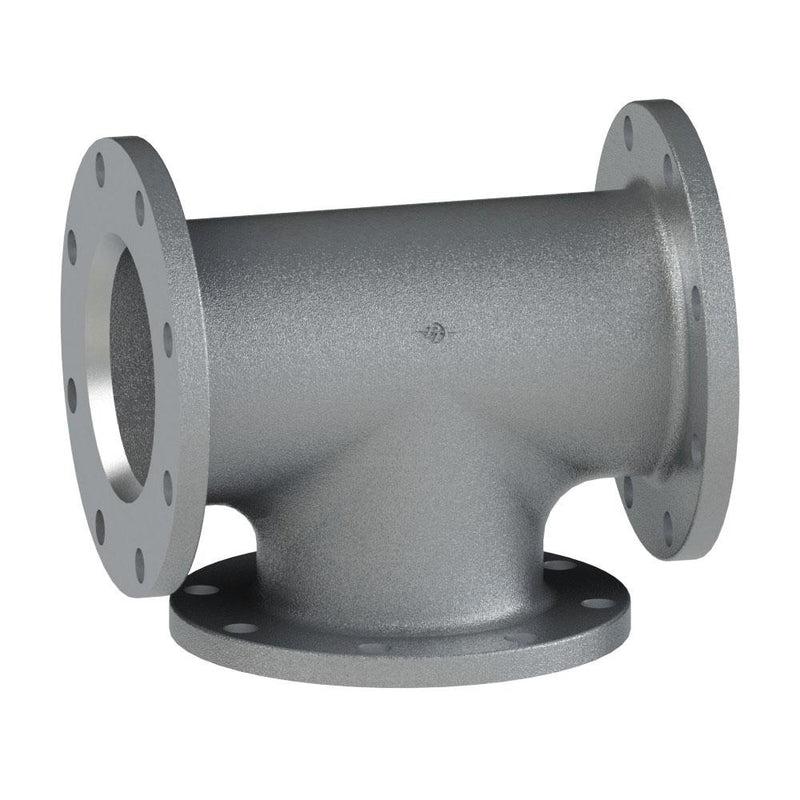

60573000 (TTF30T) by PT-Coupling | Petroleum Handling TTMA Flange Tee | 3" TTMA Flange | Aluminum

Name: 60573000 (TTF30T) by PT-Coupling | Petroleum Handling TTMA Flange Tee | 3" TTMA Flange | Aluminum
Brand: PT-Coupling
SKU: 60573000 PT-Coupling
Price: 234.0 USD
Availability: InStock

Save $138.13

$372.13

$372.13 - $372.13

$372.13

$234.00

$234.00 - $234.00

$234.00

PT Coupling
Petroleum Handling TTMA Flange Tee | Aluminum

PT Coupling’s petroleum handling fittings support all stages of fuel production and transport, from refining to tank trucks. Also compatible with bio-fuel applications.

Made in the USA.

Specifications for Variant SKU: 60573000 PT-Coupling
Series:	Petroleum Handling
Shape (Orientation):	Tee
Ends Configuration:	3in TTMA Flange, 3in TTMA Flange, 3in TTMA Flange, Some Ends Match
Material(s):	Aluminum

Overview:
PT Coupling's petroleum handling fittings are used in all phases of petroleum manufacturing, transportation and logistics. They serve important roles in fuel transportation, from refining applications to tank trucks, and much more. They are also suited to work with the emerging bio-fuel industry.
Features & Applications:
Tank Truck Flanges conform to (TTMA) Truck Trailer Manufacturers Assoc. standards. Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA

Part Name	Item #	Material	TTMA Flange Size	Max. Allowable Working Press. (PSI)*
TTF30T	60573000	Aluminum	3" x 3" x 3"	200 PSI
TTF40T	60574000	Aluminum	4" x 4" x 4"	150 PSI
TTF60T	60576000	Aluminum	6" x 6" x 6"	75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
