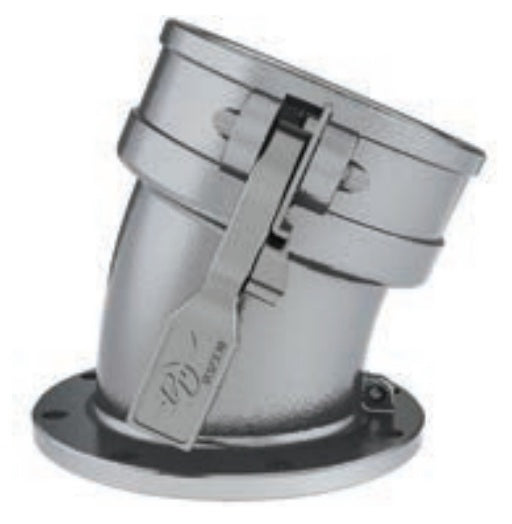

6058400022 (TTF40C-22.5) by PT-Coupling | Petroleum Handling Cam & Groove Adapter | 22.5° Elbow | 4" Coupler x 4" TTMA Flange | Aluminum

6058400022 (TTF40C-22.5) by PT-Coupling | Petroleum Handling Cam & Groove Adapter | 22.5° Elbow | 4" Coupler x 4" TTMA Flange | Aluminum

Save $67.93 Save $67.93
$182.98
$182.98 - $182.98
$182.98
$115.05
$115.05 - $115.05
$115.05

PT Coupling
Petroleum Handling Cam & Groove (Camlock) Adapter | 22.5° Elbow | Coupler x TTMA Flange | Aluminum

PT Coupling’s petroleum handling fittings support all stages of fuel production and transport, from refining to tank trucks. Also compatible with bio-fuel applications.

Made in the USA.
Specifications for Variant SKU: 6058400022 PT-Coupling
Series: Petroleum Handling
Shape (Orientation): 22.5 Degree Elbow
Cam Type: Other
Ends Configuration: 4in Female Cam & Groove, 4in TTMA Flange
Material(s): Aluminum
Overview:
  • PT Coupling's petroleum handling fittings are used in all phases of petroleum manufacturing, transportation and logistics.
  • They serve important roles in fuel transportation, from refining applications to tank trucks, and much more.
  • They are also suited to work with the emerging bio-fuel industry.
Features & Applications:
  • Tank Truck Flanges conform to (TTMA) Truck Trailer Manufacturers Assoc. standards.
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
Part
Name		 Item # Coupler
Size		 TTMA Flange
Size		 Max. Allowable
Working Press.
(PSI)*
TTF40C-22.5 6058400022 4" 4" 150 PSI
TTF40C-22.5 605840022P** 4" 4" 150 PSI

** with brass paddle handle
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
