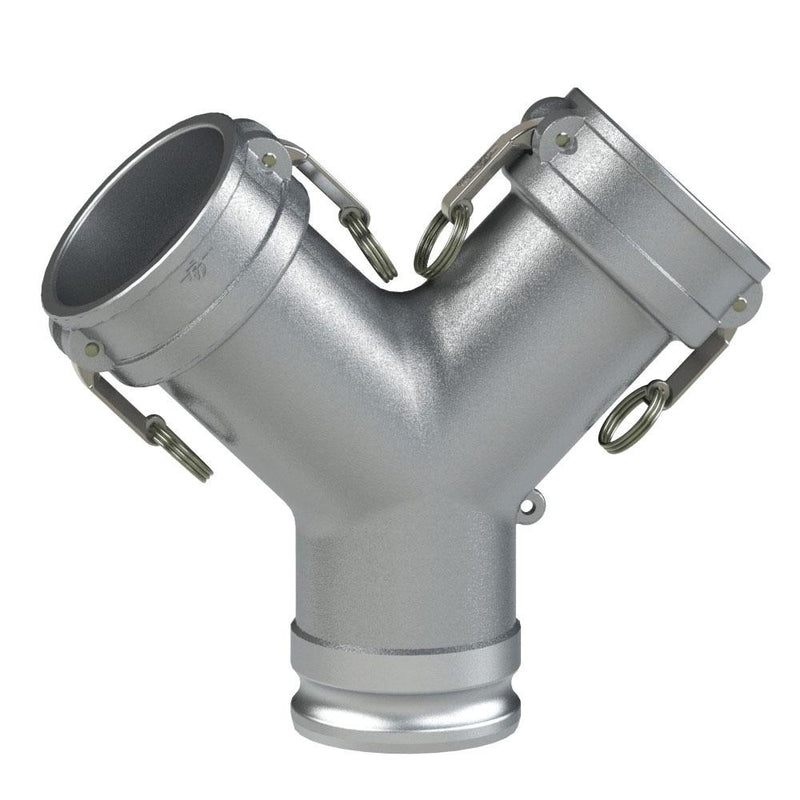

60596061 (60AX60CYHD) by PT-Coupling | Cam & Groove Y Adapter | Type AXCY | 6" Adapter x 6" Coupler x 6" Coupler | Aluminum | Buna-N Seal

Save $165.83

$1,492.46

$1,492.46 - $1,492.46

$1,492.46

$1,326.63

$1,326.63 - $1,326.63

$1,326.63

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Quantity

Specifications for Variant SKU: 60596061 PT-Coupling
Shape (Orientation):	Y Shape
Cam Type:	Other
Ends Configuration:	6in Male Cam & Groove, 6in Female Cam & Groove, 6in Female Cam & Groove, Some Ends Match
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. 6" Heavy Duty fittings are rated at 150 PSI. Made in the USA

Part Name	Item #	Adapter Size	Coupler Size	Max. Allowable Working Press. (PSI)*
20AX20CY	60312020	2"	2", 2"	250 PSI
40AX40CY	60594140	4"	4", 4"	150 PSI
60AX60CYHD	60596061	6"	6", 6"	150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
