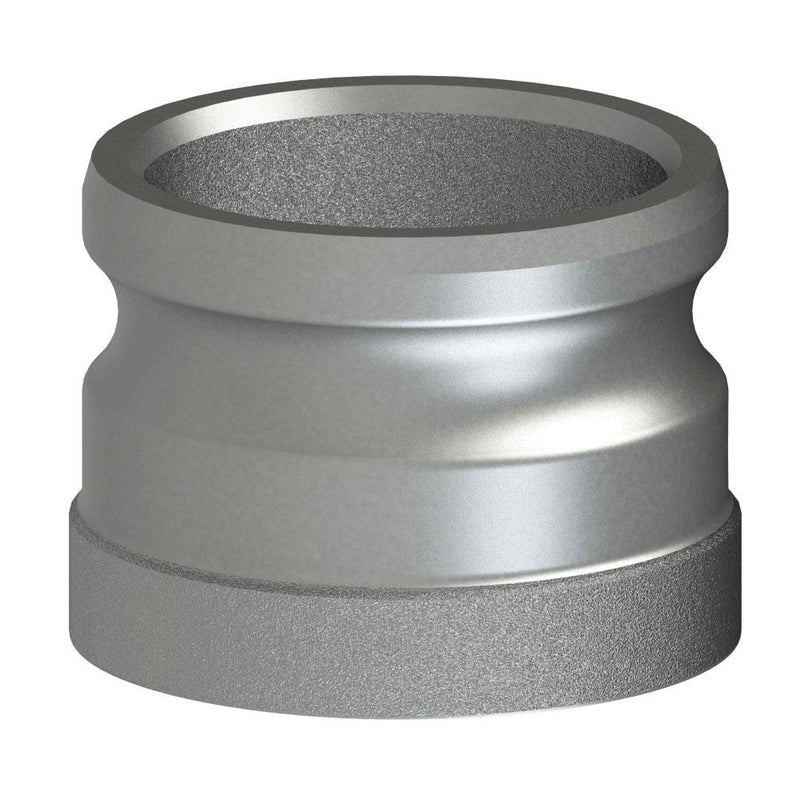

60601501 (15AWS) by PT-Coupling | Cam & Groove Adapter | Type AWS | 1-1/2" Adapter x Socket Weld for Tube | Aluminum

Name: 60601501 (15AWS) by PT-Coupling | Cam & Groove Adapter | Type AWS | 1-1/2" Adapter x Socket Weld for Tube | Aluminum
Brand: PT-Coupling
SKU: 60601501 PT-Coupling
Price: 38.05 USD
Availability: InStock

Save $22.47

$60.52

$60.52 - $60.52

$60.52

$38.05

$38.05 - $38.05

$38.05

PT Coupling
Cam & Groove (Camlock) Adapter | Type AWS | Adapter x Socket Weld for Tube | Aluminum

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 60601501 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Other
Ends Configuration:	1-1/2in Male Cam & Groove, 1-1/2in Weld End
Material(s):	Aluminum

Features & Applications:
Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA


Part Name	Item #	Size	Socket Depth (A)	Outside Diameter (B)	Inside Diameter (C)	Overall Length (D)	Socket Diameter (E)	Max. Allowable Working Press. (PSI)*
15AWS	60601501	1-1/2"	0.40"	2.25"	1.35"	2.13"	1.52"	250 PSI
20AWS	60602003	2"	0.40"	2.74"	1.81"	2.50"	2.02"	250 PSI
25AWS	60602501	2-1/2"	0.40"	3.25"	2.14"	2.56"	2.52"	200 PSI
30AWS	60603001	3"	0.40"	3.75"	2.81"	2.75"	3.02"	200 PSI
40AWS	60604007A	4"	0.60"	5.01"	3.00"	2.97"	4.03"	150 PSI
50AWS	60605001	5"	0.60"	6.00"	4.78"	2.94"	5.03"	75 PSI
60AWS	60606002	6"	0.60"	7.00"	5.84"	2.90"	6.03"	75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
