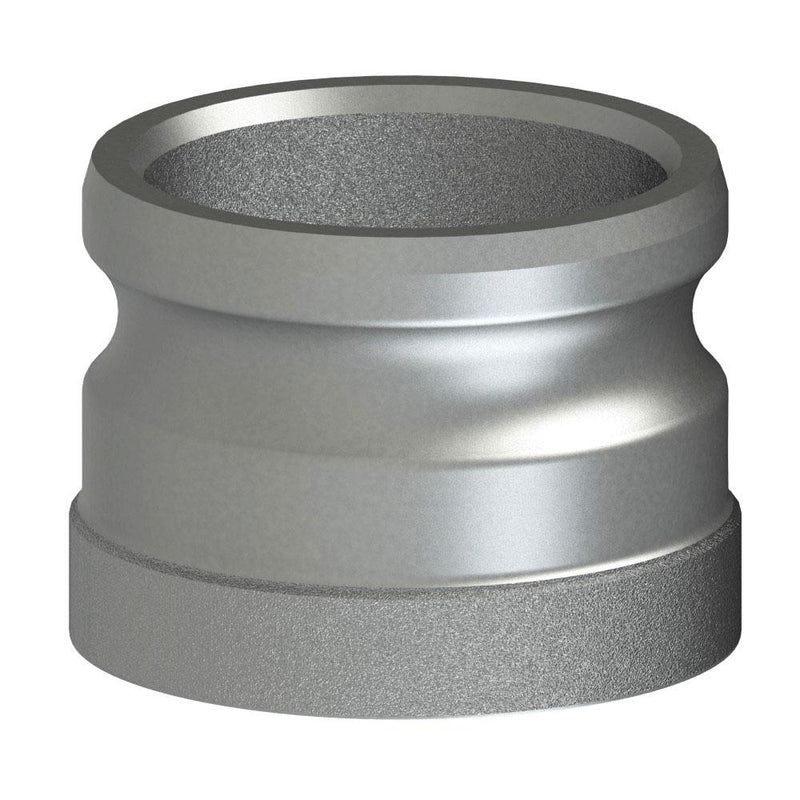

60605001 (50AWS) by PT-Coupling | Cam & Groove Adapter | Type AWS | 5" Adapter x Socket Weld for Tube | Aluminum

60605001 (50AWS) by PT-Coupling | Cam & Groove Adapter | Type AWS | 5" Adapter x Socket Weld for Tube | Aluminum

Save $54.74 Save $54.74
$147.45
$147.45 - $147.45
$147.45
$92.71
$92.71 - $92.71
$92.71

PT Coupling
Cam & Groove (Camlock) Adapter | Type AWS | Adapter x Socket Weld for Tube | Aluminum

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 60605001 PT-Coupling
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 5in Male Cam & Groove, 5in Weld End
Material(s): Aluminum
Features & Applications:
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
Part
Name		 Item # Size Socket
Depth
(A)		 Outside
Diameter
(B)		 Inside
Diameter
(C)		 Overall
Length
(D)		 Socket
Diameter
(E)		 Max. Allowable
Working Press.
(PSI)*
15AWS 60601501 1-1/2" 0.40" 2.25" 1.35" 2.13" 1.52" 250 PSI
20AWS 60602003 2" 0.40" 2.74" 1.81" 2.50" 2.02" 250 PSI
25AWS 60602501 2-1/2" 0.40" 3.25" 2.14" 2.56" 2.52" 200 PSI
30AWS 60603001 3" 0.40" 3.75" 2.81" 2.75" 3.02" 200 PSI
40AWS 60604007A 4" 0.60" 5.01" 3.00" 2.97" 4.03" 150 PSI
50AWS 60605001 5" 0.60" 6.00" 4.78" 2.94" 5.03" 75 PSI
60AWS 60606002 6" 0.60" 7.00" 5.84" 2.90" 6.03" 75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
