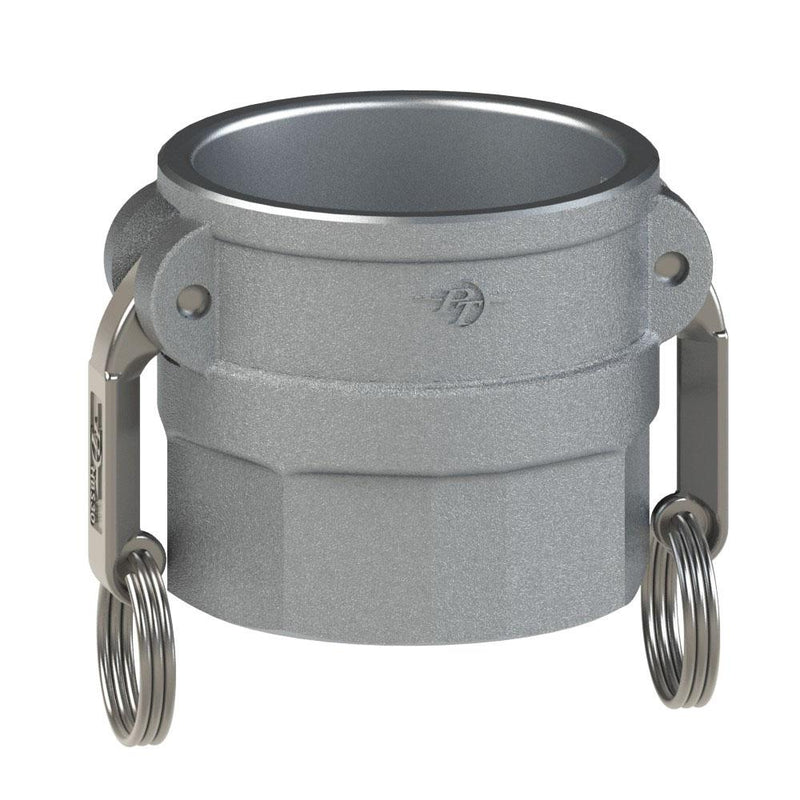

60625001 (50DWS) by PT-Coupling | Cam & Groove Adapter | Type DWS | 5" Coupler x Socket Weld for Pipe | Aluminum

Name: 60625001 (50DWS) by PT-Coupling | Cam & Groove Adapter | Type DWS | 5" Coupler x Socket Weld for Pipe | Aluminum
Brand: PT-Coupling
SKU: 60625001 PT-Coupling
Price: 124.11 USD
Availability: InStock

Save $73.27

$197.38

$197.38 - $197.38

$197.38

$124.11

$124.11 - $124.11

$124.11

PT Coupling
Cam & Groove (Camlock) Adapter | Type DWS | Coupler x Socket Weld for Pipe | Aluminum

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 60625001 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Other
Ends Configuration:	5in Female Cam & Groove, 5in Weld End
Material(s):	Aluminum

Features & Applications:
Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA


Part Name	Item #	Size	O. D. with Cam Arms Extended (A)	Outside Diameter (B)	Inside Diameter (C)	Overall Length (D)	Socket Depth (E)	Socket Diameter (F)	Max. Allowable Working Press. (PSI)*
15DWS	60621513	1-1/2"	7.16"	3.56"	1.50"	2.81"	0.50"	1.95"	250 PSI
20DWS	60622002	2"	7.54"	3.94"	1.88"	3.10"	0.70"	2.44"	250 PSI
30DWS	60623003	3"	9.56"	5.46"	2.88"	3.50"	.70"	3.57"	200 PSI
40DWS	60624005	4"	10.66"	6.56"	3.60"	3.90"	.70"	4.58"	150 PSI
50DWS	60625001	5"	11.67"	7.57"	4.50"	4.20"	.90"	5.66"	75 PSI
60DWS	60626004	6"	16.26"	10.16"	5.50"	4.54"	.90"	6.72"	75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
