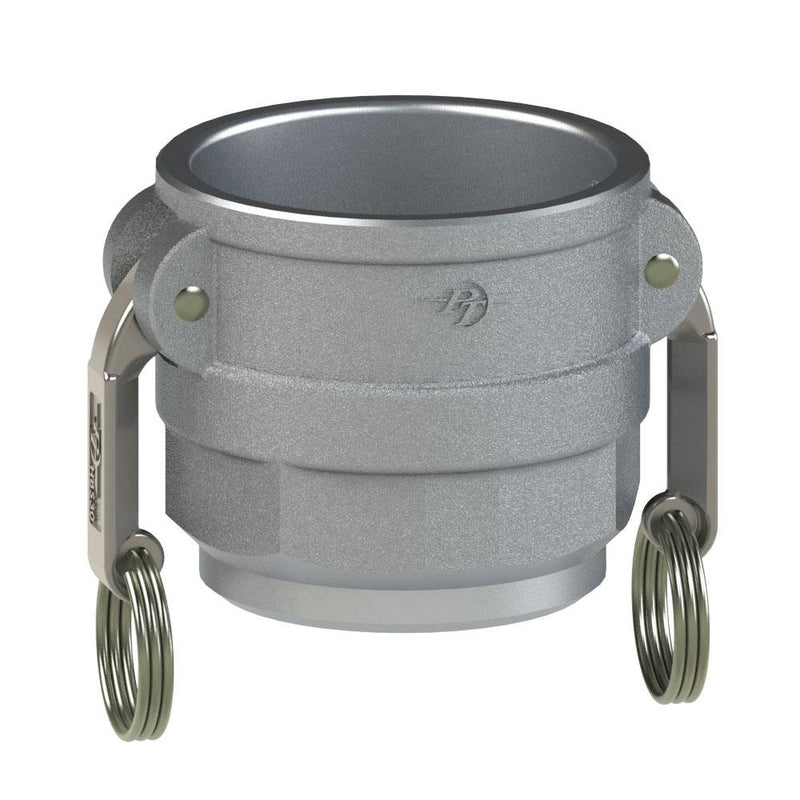

60626016 (60DWB) by PT-Coupling | Cam & Groove Adapter | Type DWB | 6" Coupler x Butt Weld for Schedule 10 Pipe | Aluminum

Name: 60626016 (60DWB) by PT-Coupling | Cam & Groove Adapter | Type DWB | 6" Coupler x Butt Weld for Schedule 10 Pipe | Aluminum
Brand: PT-Coupling
SKU: 60626016 PT-Coupling
Price: 190.03 USD
Availability: InStock

Save $112.17

$302.20

$302.20 - $302.20

$302.20

$190.03

$190.03 - $190.03

$190.03

PT Coupling
Cam & Groove (Camlock) Adapter | Type DWB | Coupler x Butt Weld for Schedule 10 Pipe | Aluminum

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 60626016 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Other
Ends Configuration:	6in Female Cam & Groove, 6in Weld End
Material(s):	Aluminum

Features & Applications:
Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA


Part Name	Item #	Size	O. D. with Cam Arms Extended (A)	Outside Diameter (B)	Inside Diameter (C)	Overall Length (D)	Max. Allowable Working Press. (PSI)*
20DWB	60622019	2"	7.54"	3.94"	1.75"	3.09"	250 PSI
30DWB	60623016	3"	9.56"	5.46"	2.83"	3.82"	200 PSI
40DWB	60624013	4"	10.66"	6.56"	3.50"	4.00"	150 PSI
60DWB	60626016	6"	16.26"	10.16"	5.50"	4.54"	75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
