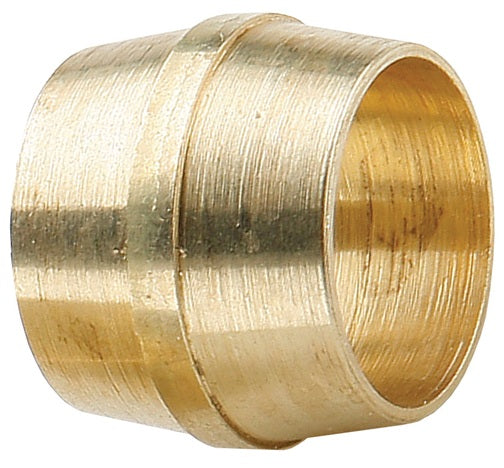

60NAB10 by Dixon Valve | Air Brake Fitting | Sleeve | 5/8" Tube Size | Brass

Name: 60NAB10 by Dixon Valve | Air Brake Fitting | Sleeve | 5/8" Tube Size | Brass
Brand: Dixon
SKU: 60NAB10 Dixon
Price: 0.89 USD
Availability: InStock

Save $0.10

$0.99

$0.99 - $0.99

$0.99

$0.89

$0.89 - $0.89

$0.89

Dixon Valve & Coupling
Air Brake Fitting | Sleeve

Ref. SAE 100115

Designed for use in air brake systems or cab controls.

Compatible tubing: SAE J844 type A and B.

Quantity

Specifications for Variant SKU: 60NAB10 Dixon
Shape (Orientation):	No Orientation
Material(s):	Brass

Use:
Recommended tubing: Polyethylene, Polyurethane 95A Durometer.
Features:
Utilize ribbed sleeve for compression and positive grip.
Construction:
Machined from CA260, CA345 or CA377 brass.
Specifications:
Temperature range: -40°F to 200°F (-40°C to 93°C).
Approvals:
Ref. SAE 100115 Meets DOT FMVSS 571.106 and SAE J246.
Assembly Instructions:
1. Cut tubing squarely - maximum of 15° angle allowable. 2. Check that port or mating part is clean and free of debris. 3. Insert tubing into fittings until it bottoms on seat. 4. Tighten nut with wrench until one thread remains visible on the fittings body (this will allow for a number of remakes); or, the nut should be screwed down finger tight, then wrench-tightened as indicated in the chart below.

Tube Size	Turns required to seal from hand tight
3/16"	2-1/2
1/4"	3
3/8" & 1/2"	4
5/8" & 3/4"	3-1/2

Part Number	Tube Size	Pipe Size	Straight Thread
60NAB3	3/16"
60NAB4	1/4"
60NAB6	3/8"
60NAB8	1/2"
60NAB10	5/8"
60NAB12	3/4"
