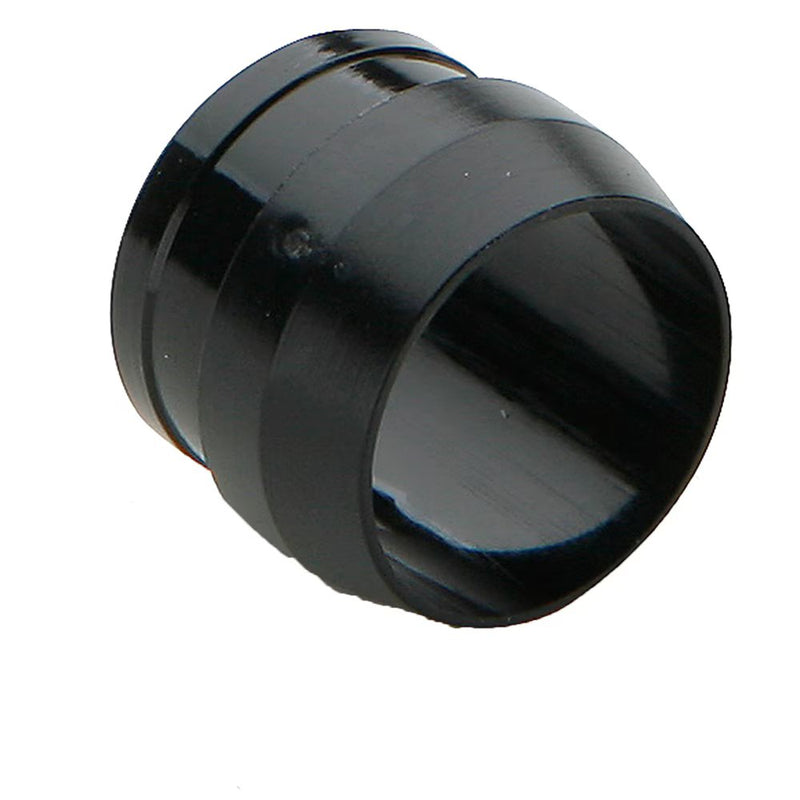

60P-6 by Parker | Poly-Tite Fittings | 3/8" Tube Size Sleeve | .367" Length | Acetal | Pack of 200

Save $41.07

$102.67

$102.67 - $102.67

$102.67

$61.60

$61.60 - $61.60

$61.60

by Parker Hannifin
Poly-Tite Fittings:Acetal Plastic Sleeve 60P

Package Quantity: 200 Units

Quantity

Specifications for Variant SKU: 60P-6 Parker \| 200 \|
Series:	60P Series
Shape (Orientation):	No Orientation
Material(s):	Acetal
Special Properties:	Silicone Free

Specification:
Product Features:	Self aligning captive sleeve Built-in tube support Knurled nuts for hand tightening Plastic and brass sleeves available Chrome plated and stainless steel side latch couplers available
Markets:	Dental Packaging Machine Tools Car Wash Printing
Applications:	Pneumatic Systems Water Lines Dental Equipment
Pressure Range:	Up to 150 PSI (10.3 bar)
Temperature Range:	0° to +150° F (-17.7° to +65.5° C)
O-Rings:	Buna N on chrome plated couplers Fluorocarbon on Stainless Steel couplers
Compatible Tubing:	Polyethylene Nylon Polypropylene Vinyl


Part Number	Tube Size	A	D	L
60P-4	1/4"	.334"	.261"	.338"
60P-5	5/16"	.405"	.321"	.340"
60P-6	3/8"	.465"	.381"	.367"
60P-8	1/2"	.628"	.514"	.399"
