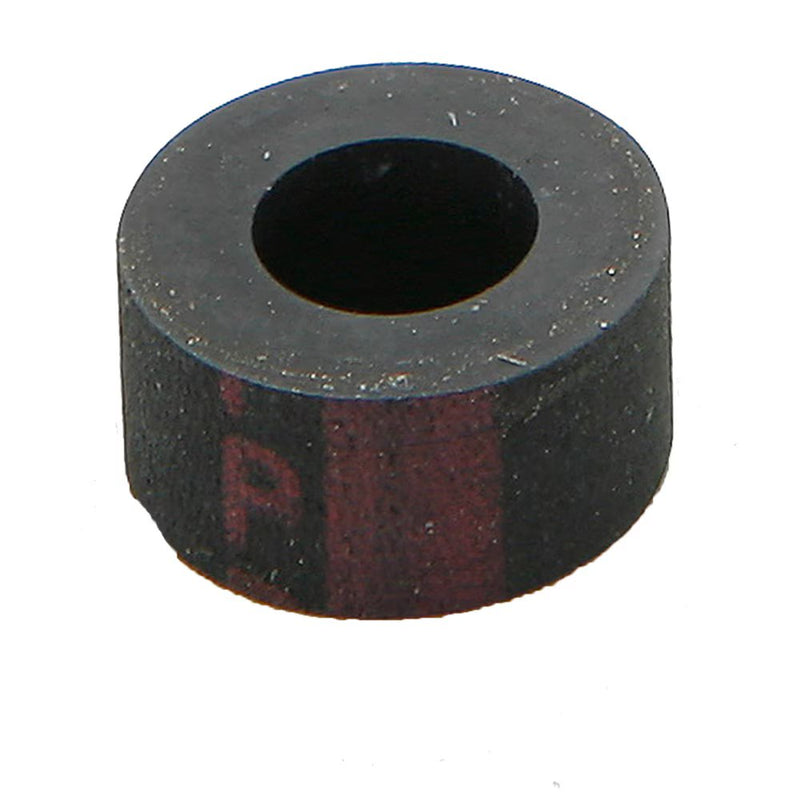

60VLV-8 by Parker | Vibra-Lok Fittings | 1/2" Sleeve | Fluorocarbon | Pack of 50

Save $28.70

$315.73

$315.73 - $315.73

$315.73

$287.03

$287.03 - $287.03

$287.03

by Parker Hannifin
Vibra-Lok Fittings:Sleeve (Fluorocarbon) 60VLV

Package Quantity: 50 Units

Quantity

Specifications for Variant SKU: 60VLV-8 Parker \| 50 \|
Brand:	Vibra-Lok
Series:	60VL Series
Shape (Orientation):	No Orientation
Seal Material(s):	Fluorocarbon
Special Properties:	Fuel Grade, Vibration Resistance

Specification:
Product Features:	Brass Body Sleeves in Buna N and Fluorocarbon NPTF and SAE J1926 Straight Threads are Standard Excellent Vibration Resistance
Markets:	Heavy Duty Truck Trailer Mobile
Applications:	Oil Fuel Coolant Lines on engines
Pressure Range:	Dependent on condition and tube size, refer to pressure chart

Temperature Range:	-15° to +450° F (-26.1° to +232.2° C) with Fluorocarbon Sleeve -30° to +275° F (-34.4° to +135° C) with Buna N Sleeve
Compatible Tubing:	Copper Aluminum Steel (Bundy) Stainless Steel Glass


Part Number	Tube Size	A	D	L
60VLV-3	3/16"	.359"	.156"	.20"
60VLV-4	1/4"	.422"	.219"	.21"
60VLV-5	5/16"	.484"	.281"	.24"
60VLV-6	3/8"	.547"	.344"	.25"
60VLV-8	1/2"	.688"	.469"	.36"
60VLV-10	5/8"	.875"	.594"	.48"
60VLV-12	3/4"	1.000"	.720"	.59"
