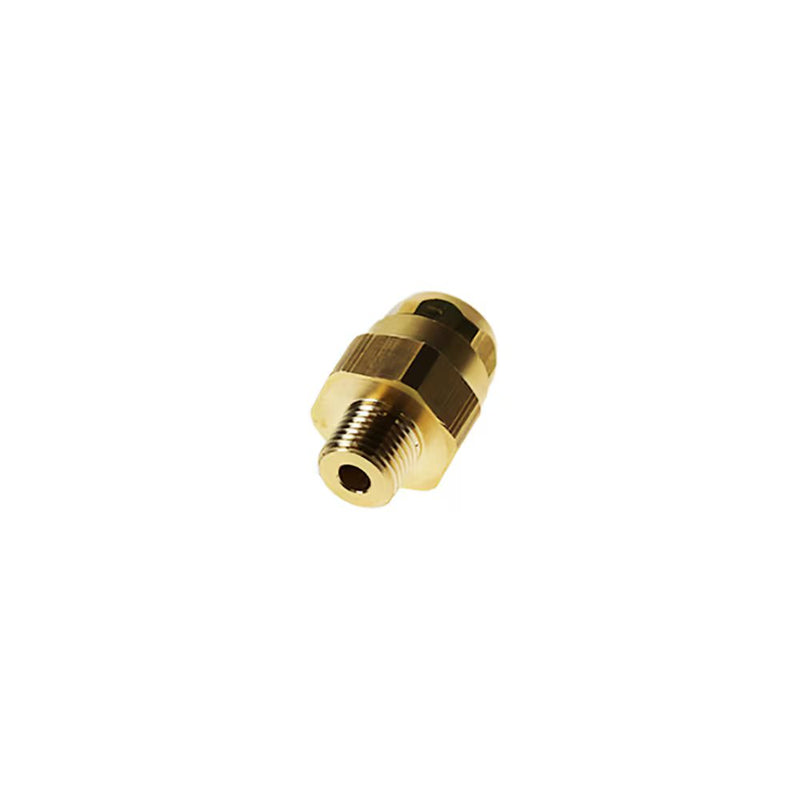

6101 06 60 by Parker | Legris Stud Fitting | 6 mm Tube Size x M10x1 Male M10 Metric Thread | 17 mm Hex | Straight | Brass | Pack of 10

Save $18.51

$203.60

$203.60 - $203.60

$203.60

$185.09

$185.09 - $185.09

$185.09

by Parker Hannifin
LF 6100® Push-In Fittings:6101 Stud Fitting, Male Parallel and Metric Thread

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 6101 06 60 Parker \| 10 \|
Series:	6101 Series
Shape (Orientation):	Straight
Material(s):	Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free

Technical Characteristics:	Compatible Fluids: Lubricants, compressed air, vacuum, other fluids and compatible gases. Working Pressure: Vacuum to 60 bar. Working Temperature: -40°C to +120°C
Advantages:	Sealing guaranteed by 3 seals Tube cannot be disconnected without the use of a spanner Up to 60 bar, with rigid polymer or grooved metal tubing.
Regulations:	RoHS REACH PED
Component Materials:	Body: Brass Spring collet: Brass Gripping teeth or collet: Brass Seals: EPDM


Part Number	ØD	F1	F2	H	Kg
6101 04 60	4 mm	M10x1	13 mm	11 mm	14 mm
6101 06 60	6 mm	M10x1	17 mm	14 mm	17.5 mm
