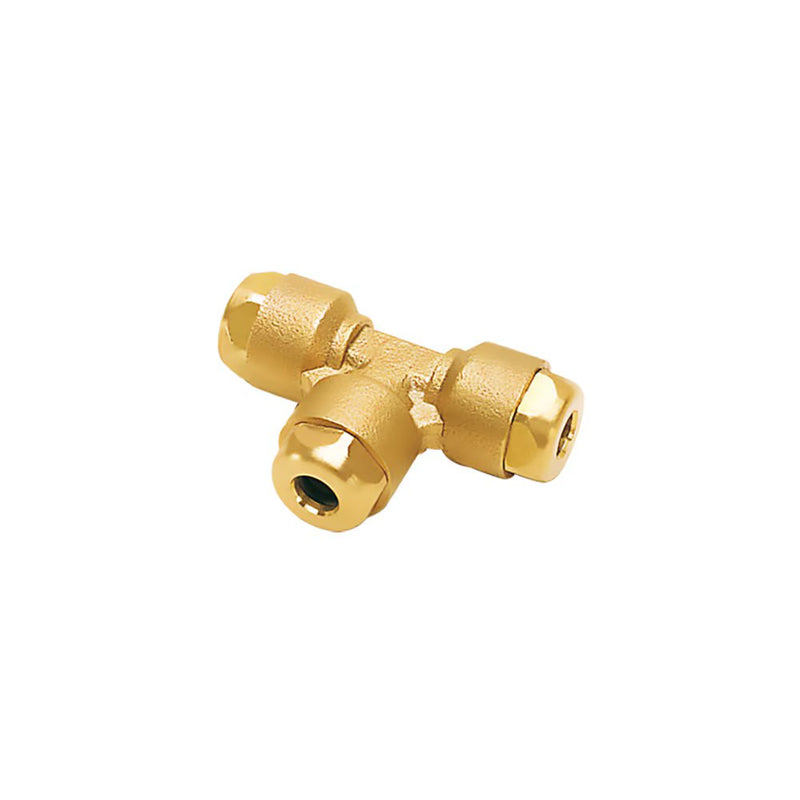

6104 04 00 by Parker | Legris Tube-to-Tube | 4 mm Tube Size | 40 mm Length | Tee | Brass | Pack of 10

Save $291.43

$728.57

$728.57 - $728.57

$728.57

$437.14

$437.14 - $437.14

$437.14

by Parker Hannifin
LF 6100® Push-In Fittings:6104 Equal Tee

Package Quantity: 10 Units

Specifications for Variant SKU: 6104 04 00 Parker \| 10 \|
Series:	6104 Series
Shape (Orientation):	Tee
Material(s):	Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free

Technical Characteristics:	Compatible Fluids: Lubricants, compressed air, vacuum, other fluids and compatible gases. Working Pressure: Vacuum to 60 bar. Working Temperature: -40°C to +120°C
Advantages:	Sealing guaranteed by 3 seals Tube cannot be disconnected without the use of a spanner Up to 60 bar, with rigid polymer or grooved metal tubing.
Regulations:	RoHS REACH PED
Component Materials:	Body: Brass Spring collet: Brass Gripping teeth or collet: Brass Seals: EPDM


Part Number	ØD	F	G	H	L/2	Kg
6104 04 00	4 mm	11 mm	12.5 mm	26.5 mm	20 mm	.034 Kg
6104 06 00	6 mm	14 mm	16 mm	36 mm	25.5 mm	.081 Kg
