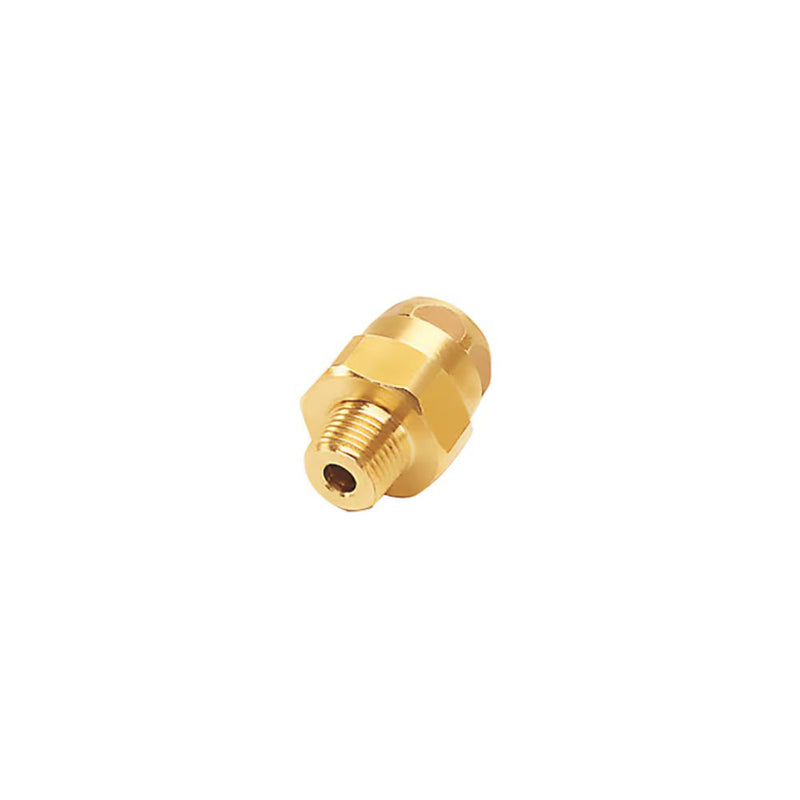

6105 04 13 by Parker | Legris Stud Fitting | 4 mm Tube Size x 1/4" Male BSPT Thread | 14 mm Hex | Straight | Brass | Pack of 10

Save $124.86

$312.15

$312.15 - $312.15

$312.15

$187.29

$187.29 - $187.29

$187.29

by Parker Hannifin
LF 6100® Push-In Fittings:6105 Stud Fitting, Male BSPT and Taper Metric Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 6105 04 13 Parker \| 10 \|
Series:	6105 Series
Shape (Orientation):	Straight
Material(s):	Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free

Technical Characteristics:	Compatible Fluids: Lubricants, compressed air, vacuum, other fluids and compatible gases. Working Pressure: Vacuum to 60 bar. Working Temperature: -40°C to +120°C
Advantages:	Sealing guaranteed by 3 seals Tube cannot be disconnected without the use of a spanner Up to 60 bar, with rigid polymer or grooved metal tubing.
Regulations:	RoHS REACH PED
Component Materials:	Body: Brass Spring collet: Brass Gripping teeth or collet: Brass Seals: NBR


Part Number	ØD	C	F1	F2	H	Kg
6105 04 52	4 mm	M6x1	13 mm	11 mm	16.5 mm	.013 Kg
6105 04 56	4 mm	M8x1	13 mm	11 mm	14.5 mm	.012 Kg
6105 04 57	4 mm	M8x1.25	13 mm	11 mm	16.5 mm	.012 Kg
6105 04 60	4 mm	M10x1	13 mm	11 mm	14.5 mm	.015 Kg
6105 04 10	4 mm	1/8"	13 mm	11 mm	14.5 mm	.014 Kg
6105 04 13	4 mm	1/4"	14 mm	11 mm	12.5 mm	.018 Kg
6105 06 60	6 mm	M10x1	17 mm	14 mm	16.5 mm	.024 Kg
6105 06 13	6 mm	1/4"	17 mm	14 mm	16.5 mm	.029 Kg
6105 08 65	8 mm	M12x1	19 mm	21 mm	24 mm	.041 Kg
