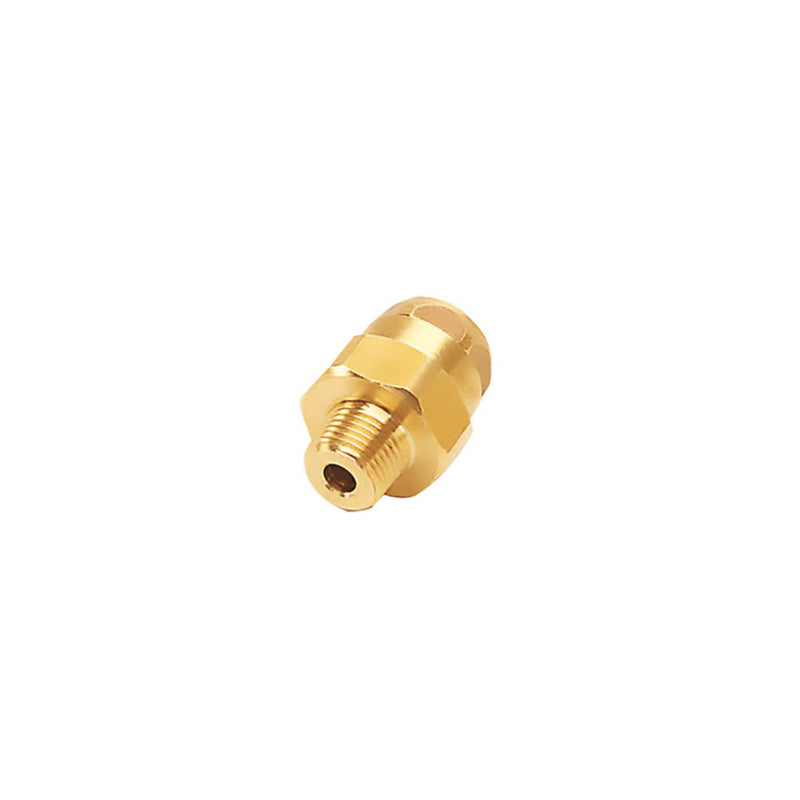

6105 04 57 by Parker | Legris Stud Fitting | 4 mm Tube Size x M8x1.5 Male M8 Metric Thread | 13 mm Hex | Straight | Brass

6105 04 57 by Parker | Legris Stud Fitting | 4 mm Tube Size x M8x1.5 Male M8 Metric Thread | 13 mm Hex | Straight | Brass | Pack of 10

Save $111.07 Save $111.07
$277.68
$277.68 - $277.68
$277.68
$166.61
$166.61 - $166.61
$166.61

by Parker Hannifin
LF 6100® Push-In Fittings:6105 Stud Fitting, Male BSPT and Taper Metric Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 6105 04 57 Parker | 10 |
Series: 6105 Series
Shape (Orientation): Straight
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free
Technical Characteristics:
  • Compatible Fluids: Lubricants, compressed air, vacuum, other fluids and compatible gases.
  • Working Pressure: Vacuum to 60 bar.
  • Working Temperature: -40°C to +120°C
Advantages:
  • Sealing guaranteed by 3 seals
  • Tube cannot be disconnected without the use of a spanner
  • Up to 60 bar, with rigid polymer or grooved metal tubing.
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: Brass
  • Spring collet: Brass
  • Gripping teeth or collet: Brass
  • Seals: NBR
Part Number ØD C F1 F2 H Kg
6105 04 52 4 mm M6x1 13 mm 11 mm 16.5 mm .013 Kg
6105 04 56 4 mm M8x1 13 mm 11 mm 14.5 mm .012 Kg
6105 04 57 4 mm M8x1.25 13 mm 11 mm 16.5 mm .012 Kg
6105 04 60 4 mm M10x1 13 mm 11 mm 14.5 mm .015 Kg
6105 04 10 4 mm 1/8" 13 mm 11 mm 14.5 mm .014 Kg
6105 04 13 4 mm 1/4" 14 mm 11 mm 12.5 mm .018 Kg
6105 06 60 6 mm M10x1 17 mm 14 mm 16.5 mm .024 Kg
6105 06 13 6 mm 1/4" 17 mm 14 mm 16.5 mm .029 Kg
6105 08 65 8 mm M12x1 19 mm 21 mm 24 mm .041 Kg
