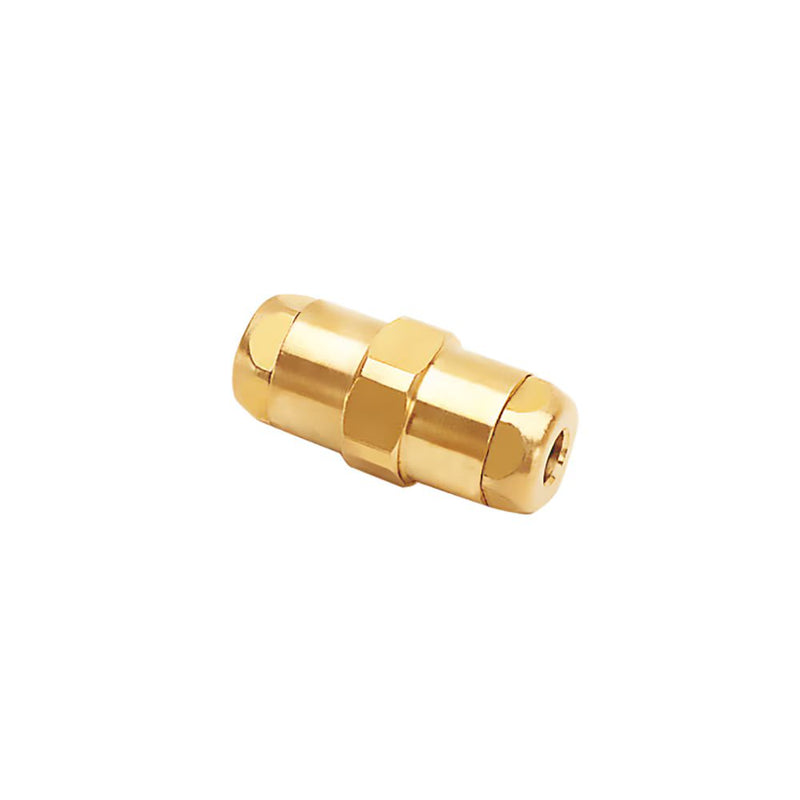

6106 08 00 by Parker | Legris Tube-to-Tube | 8mm Tube Size Connector | 46mm Length | Straight | Brass | Pack of 10

Save $327.11

$817.78

$817.78 - $817.78

$817.78

$490.67

$490.67 - $490.67

$490.67

by Parker Hannifin
LF 6100® Push-In Fittings:6106 Tube-to-Tube Connector

Package Quantity: 10 Units

Specifications for Variant SKU: 6106 08 00 Parker \| 10 \|
Series:	6106 Series
Shape (Orientation):	Straight
Material(s):	Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free

Technical Characteristics:	Compatible Fluids: Lubricants, compressed air, vacuum, other fluids and compatible gases. Working Pressure: Vacuum to 60 bar. Working Temperature: -40°C to +120°C
Advantages:	Sealing guaranteed by 3 seals Tube cannot be disconnected without the use of a spanner Up to 60 bar, with rigid polymer or grooved metal tubing.
Regulations:	RoHS REACH PED
Component Materials:	Body: Brass Spring collet: Brass Gripping teeth or collet: Brass Seals: EPDM


Part Number	ØD	F1	F2	L	Kg
6106 04 00	4 mm	13 mm	11 mm	34 mm	.025 Kg
6106 06 00	6 mm	17 mm	14 mm	39 mm	.044 Kg
6106 08 00	8 mm	19 mm	17 mm	46 mm	.069 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.

Shop Parts by Parker Fluid System Connectors Division
