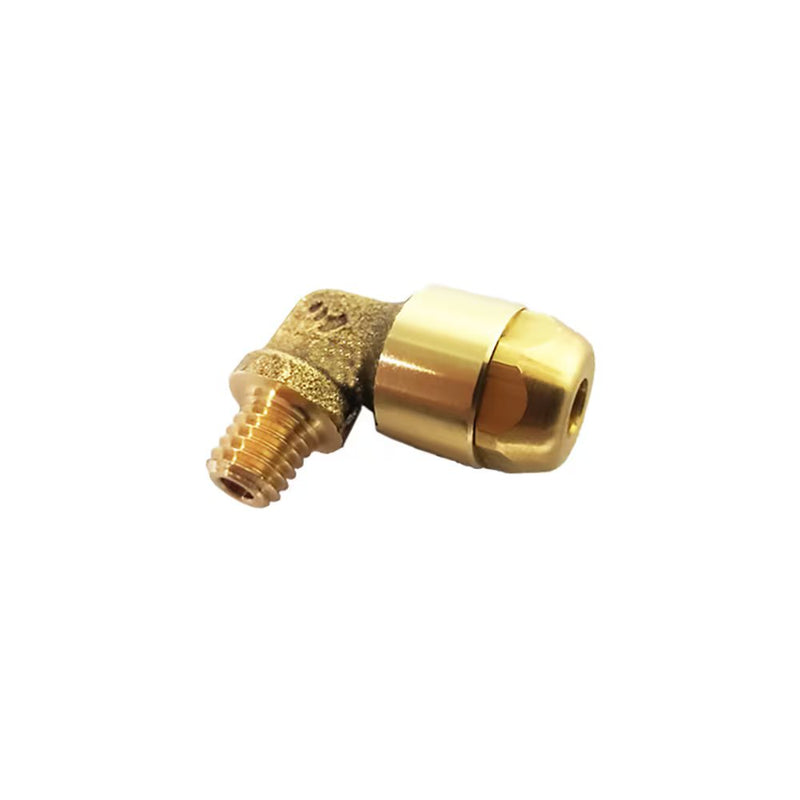

6179 04 56 by Parker | Legris Stud Fitting | 4 mm Tube Size x M8x1 Male M8 Metric Thread | 90° Elbow | Brass

6179 04 56 by Parker | Legris Stud Fitting | 4 mm Tube Size x M8x1 Male M8 Metric Thread | 90° Elbow | Brass | Pack of 10

Save $98.85 Save $98.85
$247.13
$247.13 - $247.13
$247.13
$148.28
$148.28 - $148.28
$148.28

by Parker Hannifin
LF 6100® Push-In Fittings:6179 Stud Elbow, Male BSPT and Taper Metric Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 6179 04 56 Parker | 10 |
Series: 6179 Series
Shape (Orientation): 90° Elbow
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free
Technical Characteristics:
  • Compatible Fluids: Lubricants, compressed air, vacuum, other fluids and compatible gases.
  • Working Pressure: Vacuum to 60 bar.
  • Working Temperature: -40°C to +120°C
Advantages:
  • Sealing guaranteed by 3 seals
  • Tube cannot be disconnected without the use of a spanner
  • Up to 60 bar, with rigid polymer or grooved metal tubing.
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: Brass
  • Spring collet: Brass
  • Gripping teeth or collet: Brass
  • Seals: EPDM
Part Number ØD C F G H J L Kg
6179 04 52 4 mm M6x1 11 mm 12.5 mm 14.5 mm 8 mm 20 mm .017 Kg
6179 04 56 4 mm M8x1 11 mm 12.5 mm 14.5 mm 8 mm 20 mm .018 Kg
6179 04 57 4 mm M8x1.25 11 mm 12.5 mm 15 mm 8 mm 20 mm .017 Kg
6179 04 60 4 mm M10x1 11 mm 12.5 mm 15.5 mm 8 mm 20 mm .019 Kg
6179 04 10 4 mm 1/8" 11 mm 12.5 mm 15 mm 8 mm 20 mm .019 Kg
6179 06 60 6 mm M10x1 14 mm 16 mm 18 mm 10 mm 25.5 mm .033 Kg
6179 06 10 6 mm 1/8" 14 mm 16 mm 18 mm 10 mm 25.5 mm .035 Kg
