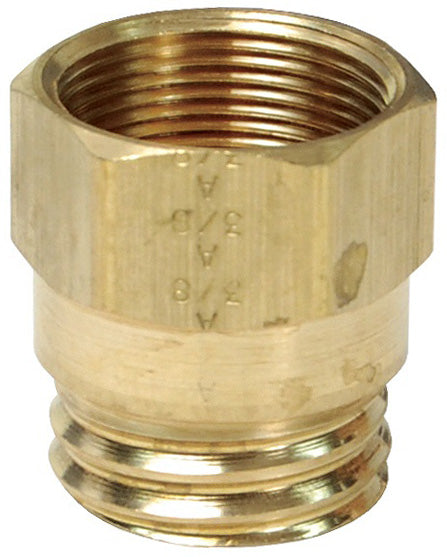

61RBSG-08 by Dixon Valve | Air Brake Fitting for Rubber Hose | Spring Guard Nut | 1/2" Hose Size | Brass Alloy 360

61RBSG-08 by Dixon Valve | Air Brake Fitting for Rubber Hose | Spring Guard Nut | 1/2" Hose Size | Brass Alloy 360

Save $0.56 Save $0.56
$6.75
$6.75 - $6.75
$6.75
$6.19
$6.19 - $6.19
$6.19

Dixon Valve & Coupling
Air Brake Fitting for Rubber Hose | Spring Guard Nut

For use with SAEJ1402 air brake hose in making hose assemblies
Specifications for Variant SKU: 61RBSG-08 Dixon
Shape (Orientation): Straight
Material(s): Brass
Use:
  • Recommended tubing: Polyethylene, Polyurethane 95A Durometer.
Features:
  • Utilize ribbed sleeve for compression and positive grip.
Construction:
  • Brass Alloy 360
Specifications:
  • Working pressure: up to 225 PSI
  • Temperature: -50°F to 212°F (-46° to 100°C)
Approvals:
  • Will meet D.O.T. FMVSS 571-106 standards when used with SAE J1402 air brake hose.
Assembly Instructions:
  • 1. Slide nut onto hose.
  • 2. Slide sleeve onto hose with tapered edge toward fitting body.
  • 3. Firmly bottom the hose into fittings.
  • 4. Screw nut onto body until it contacts the fittings body's hex.
Part Number Hose Size Length
61RBSG-06 3/8" 31/32"-20
61RBSG-08 1/2" 1-3/32"-20
