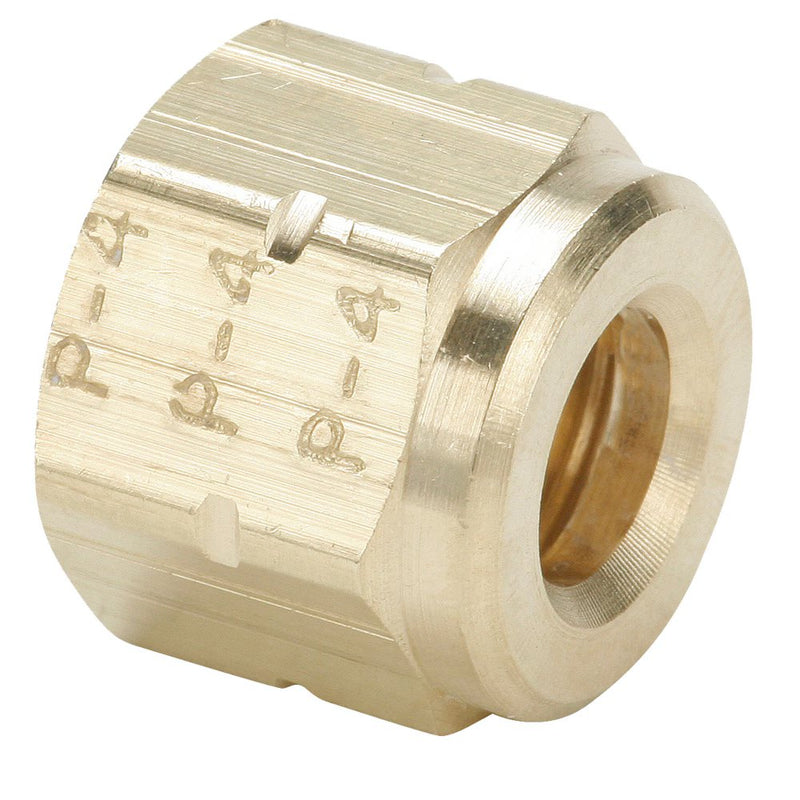

61VL-12 by Parker | Vibra-Lok Fittings | 3/4" Nut x 1-1/8" Thread | 1-1/4" Hex | Straight | Brass | Pack of 10

61VL-12 by Parker | Vibra-Lok Fittings | 3/4" Nut x 1-1/8" Thread | 1-1/4" Hex | Straight | Brass | Pack of 10

Save $67.35 Save $67.35
$168.37
$168.37 - $168.37
$168.37
$101.02
$101.02 - $101.02
$101.02

by Parker Hannifin
Vibra-Lok Fittings:Nut 61VL

Package Quantity: 10 Units

Specifications for Variant SKU: 61VL-12 Parker | 10 |
Brand: Vibra-Lok
Series: 61VL Series
Shape (Orientation): Straight
Material(s): Brass
Special Properties: Fuel Grade, Vibration Resistance
Product Features:
  • Brass Body
  • Sleeves in Buna N and Fluorocarbon
  • NPTF and SAE J1926 Straight Threads are Standard
  • Excellent Vibration Resistance
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Oil
  • Fuel
  • Coolant Lines on engines
Specification:
Pressure Range: Dependent on condition and tube size, refer to pressure chart
Temperature Range: -15° to +450° F (-26.1° to +232.2° C) with Fluorocarbon Sleeve
-30° to +275° F (-34.4° to +135° C) with Buna N Sleeve
Compatible Tubing:
  • Copper
  • Aluminum
  • Steel (Bundy)
  • Stainless Steel
  • Glass
Part Number Tube Size Straight Thread Hex (C) D L
61VL-2 1/8" 3/8"-24 7/16" .156" .44"
61VL-3 3/16" 7/16"-24 1/2" .218" .47"
61VL-4 1/4" 1/2"-24 9/16" .281" .50"
61VL-5 5/16" 9/16"-24 5/8" .344" .53"
61VL-6 3/8" 5/8"-24 3/4" .406" .53"
61VL-8 1/2" 13/16"-18 15/16" .531" .67"
61VL-10 5/8" 1"-18 1-1/8" .656" .88"
61VL-12 3/4" 1-1/8"-18 1-1/4" .781" .98"
