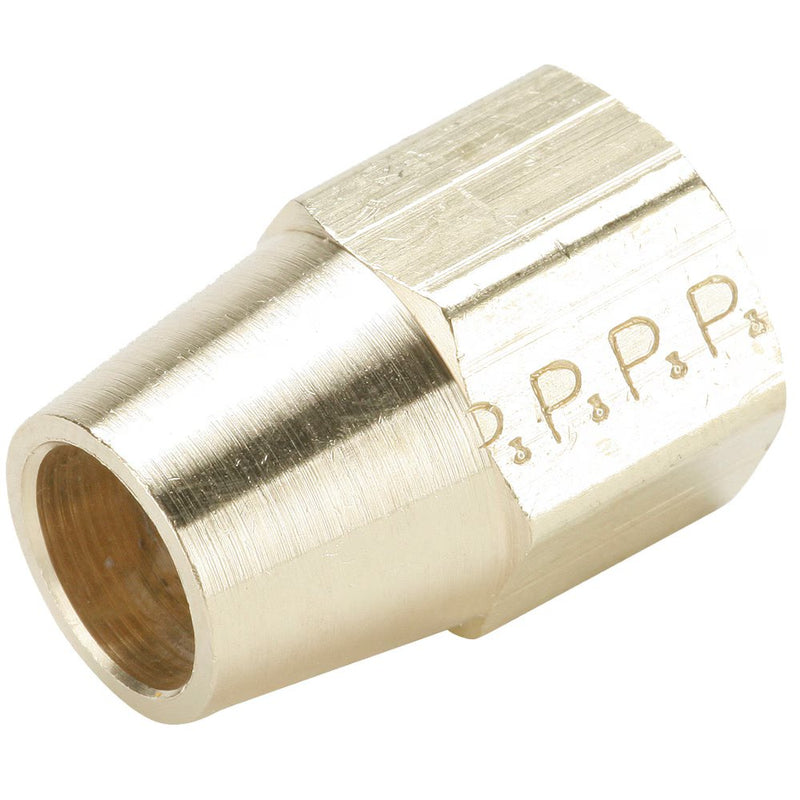

61CL-4 by Parker | Auxiliary Components | 1/4" Tube Compression x 7/16" Straight Thread | 1/2" Hex | .75" Length | Straight | Brass | Pack of 10

Save $9.51

$34.04

$34.04 - $34.04

$34.04

$24.53

$24.53 - $24.53

$24.53

by Parker Hannifin
Auxiliary Components:61CL - long nut fractional inch

Package Quantity: 10 Units

Specifications for Variant SKU: 61CL-4 Parker \| 10 \|
Series:	61CL Series
Shape (Orientation):	Straight
Material(s):	Brass
Special Properties:	Long

Product Features:	Meets functional requirements of SAE J-512 Brass or acetal sleeve available No tube preparation Forged and extruded shapes
Markets:	Industrial Packaging Pneumatic Printing
Applications:	Air Lines Lubrication Lines Cooling Lines Industry Machinery Compressors Fluid Transfer
Pressure Range	1/8, 3/16 400 psi (27.6 bar) 1/4, 5/16 300 psi (20.7 bar) 3/8, 1/2 200 psi (14 bar) 5/8 150 psi (10 bar) 3/4 100 psi (7 bar) 7/8 75 psi (5 bar)
Temperature Range	-65° to 200° F (-54° to 93° C)
Compatible Tubing:	Copper Aluminum Semi-Rigid Nylon


Part Number	ØD	Straight Thread	C	D	L
61CL-4	1/4"	7/16"-24	1/2"	.55"	.75"
61CL-6	3/8"	9/16"-24	5/8"	.382"	.97"
61CL-8	1/2"	11/16"-20	13/16"	.507"	1.06"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
