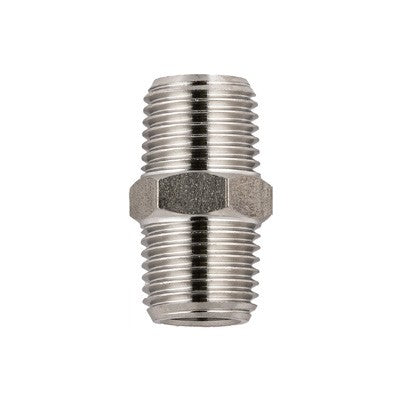

62000-3/8" AIGNEP | 60/62 Series | Hex Nipple | 3/8" BSPT Male x 3/8" BSPT Male
62000-3/8 by AIGNEP | 60/62 Series | Hex Nipple | 3/8" BSPT Male x 3/8" BSPT Male
62000-3/8" AIGNEP | 60/62 Series | Hex Nipple | 3/8" BSPT Male x 3/8" BSPT Male

62000-3/8 by AIGNEP | 60/62 Series | Hex Nipple | 3/8" BSPT Male x 3/8" BSPT Male

Save $6.68 Save $6.68
$16.70
$16.70 - $16.70
$16.70
$10.02
$10.02 - $10.02
$10.02
Specifications for Variant SKU: 62000-3/8 AIGNEP
Series: 60/62 Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Male BSPT, 3/8in Male BSPT, Some Ends Match
Material(s): Stainless Steel

Hex Nipple Stainless - BSPT

Pressure Rating: Vacuum-290 PSI
Temperature Range: -166 ° F - 572 ° F
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel

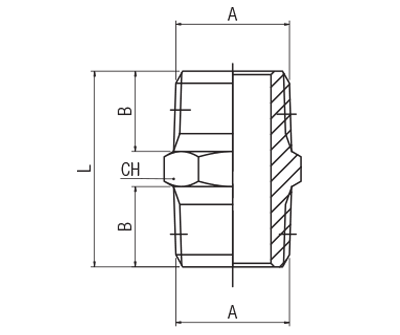

Product Number A BSPT B BSPT L CH
62000-1/8 1/8" 7.5 mm 19.5 mm 11 mm
62000-1/4 1/4" 11 mm 27 mm 14 mm
62000-3/8 3/8" 11.5 mm 28 mm 17 mm
62000-1/2 1/2" 14 mm 33.5 mm 22 mm
62000-3/4 3/4" 16.5 mm 40 mm 27 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
