62080-3/4-1/2" AIGNEP | 60/62 Series | Stainless Steel Reducer | 3/4 Male BSPT x 1/2" Female BSPP
62080-3/4-1/2 by AIGNEP | 60/62 Series | Reducer | 3/4 Male BSPT x 1/2" Female BSPP | Stainless Steel
62080-3/4-1/2" AIGNEP | 60/62 Series | Stainless Steel Reducer | 3/4 Male BSPT x 1/2" Female BSPP

62080-3/4-1/2 by AIGNEP | 60/62 Series | Reducer | 3/4 Male BSPT x 1/2" Female BSPP | Stainless Steel

Save $9.21 Save $9.21
$29.21
$29.21 - $29.21
$29.21
$20.00
$20.00 - $20.00
$20.00
Specifications for Variant SKU: 62080-3/4-1/2 AIGNEP
Series: 60/62 Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Male BSPT, 1/2in Female BSPP
Material(s): Stainless Steel

Reducer - BSPP

Pressure Rating: Vacuum-250 PSI
Temperature Range: -166 ° F - 572 ° F
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel

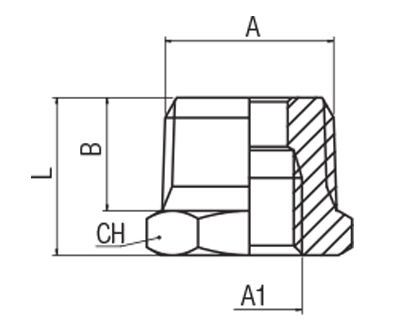

Product Number A BSPP A1 BSPP B L CH
62080-1/4-1/8 1/4" 1/8" 11 mm 16 mm 14 mm
62080-3/8-1/8 3/8" 1/8" 11.5 mm 16.5 mm 17 mm
62080-3/8-1/4 3/8" 1/4" 11.5 mm 16.5 mm 17 mm
62080-1/2-1/4 1/2" 1/4" 14 mm 19.5 mm 22 mm
62080-1/2-3/8 1/2" 3/8" 14 mm 19.5 mm 22 mm
62080-3/4-1/2 3/4" 1/2" 16.5 mm 23.5 mm 27 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
