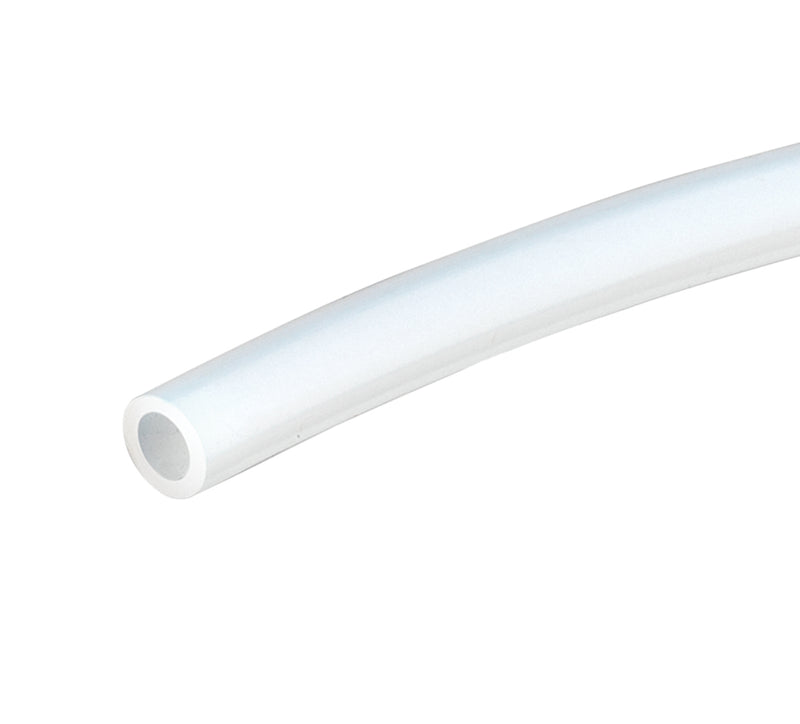

620P-0431X100 Kuri-Tec by Kuriyama | 620P Series | Polytetrafluorethylene (PTFE) Tubing | 1/4" OD | 0.188" ID | 0.031" Wall Thickness | 100ft Length

620P-0431X100 Kuri-Tec by Kuriyama | 620P Series | Polytetrafluorethylene (PTFE) Tubing | 1/4" OD | 0.188" ID | 0.031" Wall Thickness | 100ft Length

Save $33.56 Save $33.56
$187.16
$187.16 - $187.16
$187.16
$153.60
$153.60 - $153.60
$153.60

Kuri Tec® by Kuriyama
620P Series | Polytetrafluorethylene (PTFE) Tubing

Chemical resistant PTFE tubing is compatible with an extremely wide range of industrial chemicals and solvents.

Tubing complies with applicable FDA and USP Class VI requirements.

Package Quantity: 100 Foot

Specifications for Variant SKU: 620P-0431X100 Kuriyama | 100 |
Brand: Kuri Tec
Series: 620P Series
Hose Color(s): White/Off-White
Internal Diameter: 0.188in
Outer Diameter: 0.25in
Tubing Construction: PTFE
Applicable Specs & Approvals: FDA 21 CFR Part 170.199, UL94HB Flammability Rating, RoHS Compliant

SPECIFICATIONS

Applications: Aerospace and aviation applications.
Chemical transfer.
Industrial and mechanical applications.
Medical applications.
Tube: PTFE - natural color. Formulated with ingredients in compliance with applicable FDA requirements. Meets USP Class VI and RoHS criteria.
Cover: - Service Temperature Range: -454°F (-270°C) to +500°F (+260°C)
Specifications: FDA
UL
USP
Phthalate Free
RoHS
Other Features:
  • Superior Chemical Resistance - Chemical resistant PTFE compatible with an extremely wide range of industrial chemicals and solvents.
  • Handles Extreme Temperatures - Service temperature range from -454°F to +500°F. Widest temperature range of any Kuri Tec product.
  • Food Grade Materials - Tubing complies with applicable FDA and USP Class VI requirements.
  • Chemically Inert - Will not react with most substances.
  • Flame Retardant - Manufactured to meet UL94-V-O rating of the Standard for Safety of Flammability of Plastic Material in Devices and Appliance Testing.
  • Meets ASTM-D3295 - Physical properties compliant with ASTM requirements for PTFE tubing.
Part Number
100ft		 Nominal OD Nominal ID Nominal Wall Working
Pressure (PSI)
(in) (mm) (in) (mm) (in) (mm) at 70°F (20°C)
620P-0463X100 1/4" 6.4mm 0.125" 3.2mm 0.063" 1.6mm 372 PSI
620P-0431X100 1/4" 6.4mm 0.188" 4.8mm 0.031" 0.8mm 174 PSI
620P-0663X100 3/8" 9.5mm 0.250" 6.4mm 0.063" 1.6mm 240 PSI
620P-0863X100 1/2" 12.7mm 0.375" 9.5mm 0.063" 1.6mm 150 PSI
