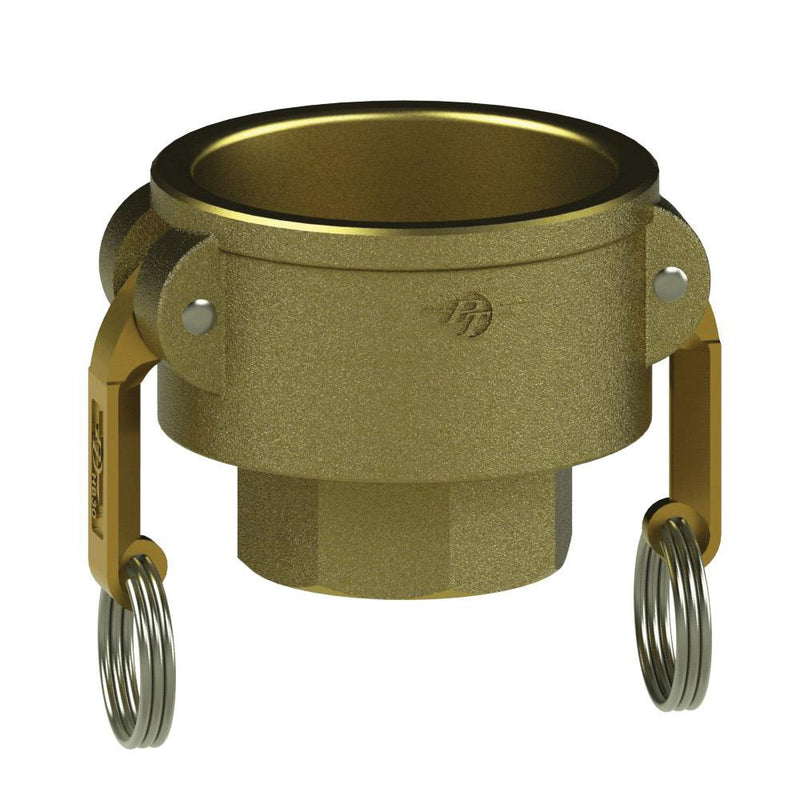

62201510 (15X10D) by PT-Coupling | Reducing Cam & Groove Adapter | Type D | 1-1/2" Coupler x 1" Female NPT | Brass | Buna-N Seal

62201510 (15X10D) by PT-Coupling | Reducing Cam & Groove Coupler | Type D | 1-1/2" Coupler x 1" Female NPT | Brass | Buna-N Seal

Save $48.45

$130.52

$130.52 - $130.52

$130.52

$82.07

$82.07 - $82.07

$82.07

PT Coupling
Reducing Cam & Groove (Camlock) Adapter | Type D | Coupler x Female NPT | Brass | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 62201510 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type D
Ends Configuration:	1-1/2in Female Cam & Groove, 1in Female NPT
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
Good corrosion resistance, less expensive than stainless steel. Softer and easier to thread than stainless steel and forms tight seals. Ideal for use with water. Can also be used with hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA

Part Name	Item #	Coupler Size	Female NPT Thread	Max. Allowable Working Press. (PSI)*
15X10D	62201510	1-1/2"	1"	250 PSI
20X15D	62202015	2"	1-1/2"	250 PSI
30X20D	62203020	3"	2"	200 PSI
40X30D	62204030	4"	3"	150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
