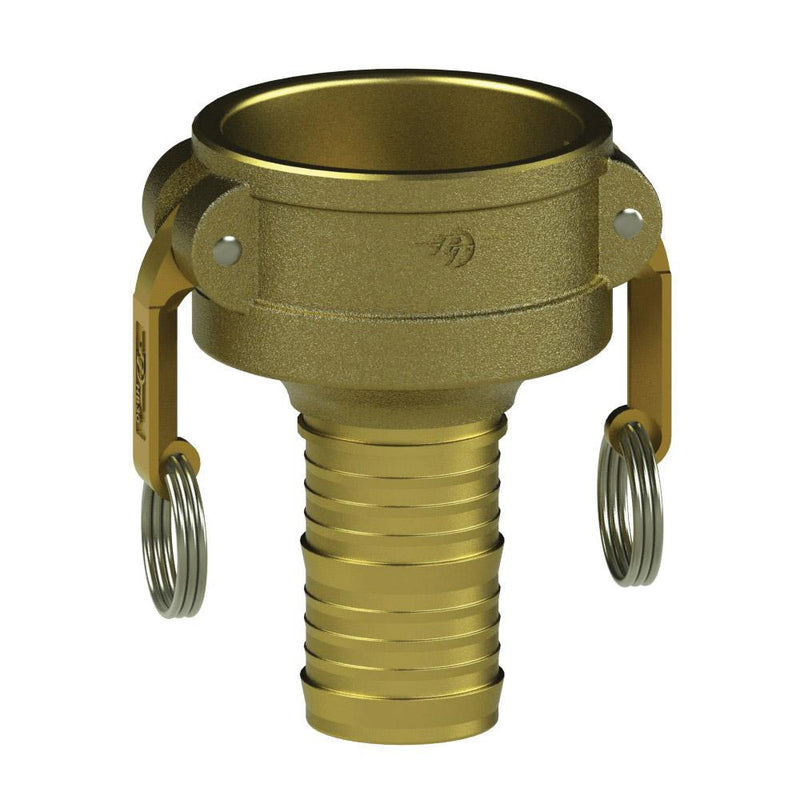

62224030 (40X30C) by PT-Coupling | Reducing Cam & Groove Fitting | Type C | 4" Coupler x 3" Hose Shank | Brass | Buna-N Seal

Save $178.17

$479.98

$479.98 - $479.98

$479.98

$301.81

$301.81 - $301.81

$301.81

PT Coupling
Reducing Cam & Groove (Camlock) Fitting | Type C | Coupler x Hose Shank | Brass | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 62224030 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type C
Ends Configuration:	4in Female Cam & Groove, 3in Hose Barb
Material(s):	Brass
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
Good corrosion resistance, less expensive than stainless steel. Softer and easier to thread than stainless steel and forms tight seals. Ideal for use with water. Can also be used with hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA

Part Name	Item #	Coupler Size	Hose Shank Size	Max. Allowable Working Press. (PSI)*
15X10C	62221510	1-1/2"	1"	250 PSI
20X15C	62222015	2"	1-1/2"	250 PSI
30X20C	62223020	3"	2"	200 PSI
40X30C	62224030	4"	3"	150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
