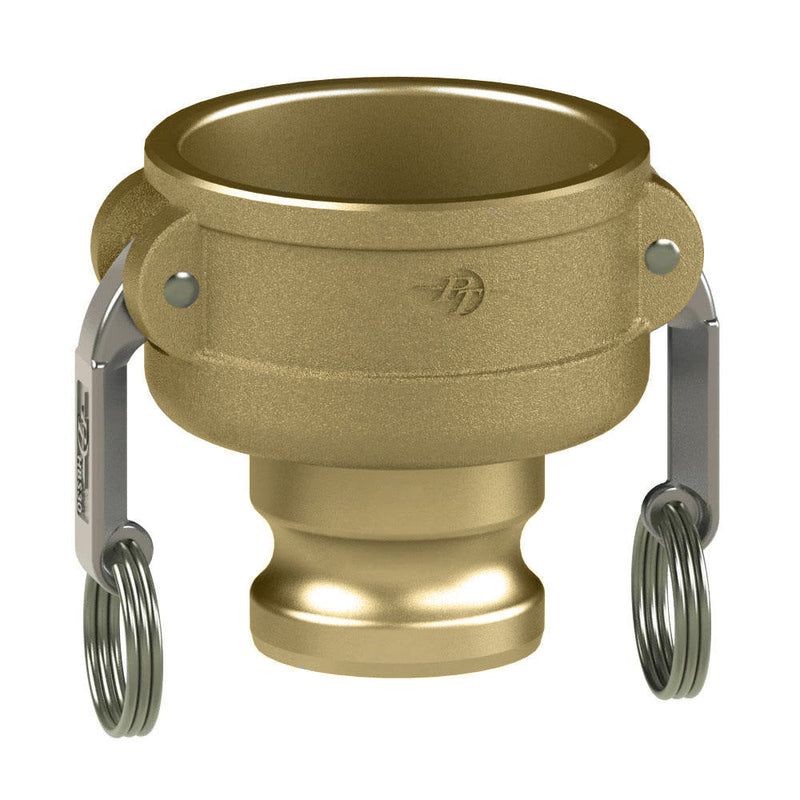

6226000097 (30CX20A SHORT) by PT-Coupling | Short Reducing Cam & Groove Adapter | Type CXA | 3" Coupler x 2" Adapter | Brass/HBS | Buna-N Seal

6226000097 (30CX20A SHORT) by PT-Coupling | Short Reducing Cam & Groove Coupler | Type CXA | 3" Coupler x 2" Adapter | Brass/HBS | Buna-N Seal

Save $125.04

$336.85

$336.85 - $336.85

$336.85

$211.81

$211.81 - $211.81

$211.81

PT Coupling
Short Reducing Cam & Groove (Camlock) Adapter | Type CXA | Coupler x Adapter | Brass/HBS | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 6226000097 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Other
Ends Configuration:	3in Female Cam & Groove, 2in Male Cam & Groove
Material(s):	Brass
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
HBS cam arms are made of 300 series Stainless Steel Good corrosion resistance, less expensive than stainless steel. Softer and easier to thread than stainless steel and forms tight seals. Ideal for use with water. Can also be used with hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA

Part Name	Item #	Coupler Size	Adapter Size	Max. Allowable Working Press. (PSI)*
30CX20A SHORT	6226000097	3"	2"	200 PSI
40CX30A SHORT	6226000098	4"	3"	150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.

Shop Parts by PT-Coupling
