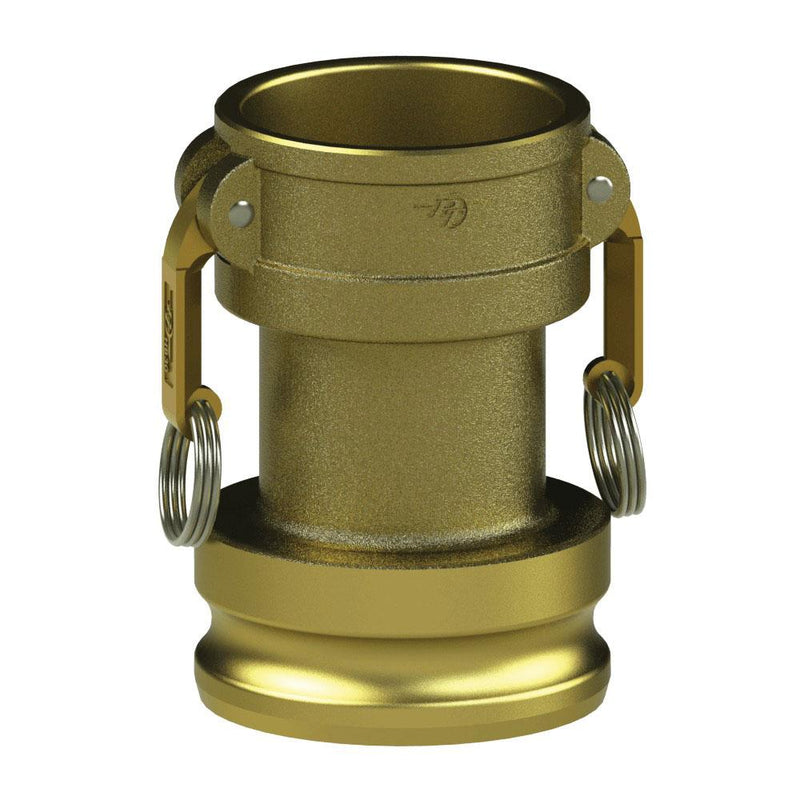

62262030 (20CX30A LONG) by PT-Coupling | Long Reducing Cam & Groove Adapter | Type CXA | 2" Coupler x 3" Adapter | Brass/HB | Buna-N Seal

62262030 (20CX30A LONG) by PT-Coupling | Long Reducing Cam & Groove Coupler | Type CXA | 2" Coupler x 3" Adapter | Brass/HB | Buna-N Seal

Save $20.64

$185.75

$185.75 - $185.75

$185.75

$165.11

$165.11 - $165.11

$165.11

PT Coupling
Long Reducing Cam & Groove (Camlock) Adapter | Type CXA | Coupler x Adapter | Brass/HB | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Quantity

Specifications for Variant SKU: 62262030 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Other
Ends Configuration:	2in Female Cam & Groove, 3in Male Cam & Groove
Material(s):	Brass
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
HB cam arms are made of Brass. Good corrosion resistance, less expensive than stainless steel. Softer and easier to thread than stainless steel and forms tight seals. Ideal for use with water. Can also be used with hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA

Part Name	Item #	Coupler Size	Adapter Size	Max. Allowable Working Press. (PSI)*
10CX15A LONG	62261015	1"	1-1/2"	250 PSI
15CX20A LONG	62261520	1-1/2"	2"	250 PSI
20CX15A LONG	62262015	2"	1-1/2"	250 PSI
20CX30A LONG	62262030	2"	3"	200 PSI
30CX40A LONG	62263040	3"	4"	150 PSI
40CX25A LONG	62264025	4"	2-1/2"	150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
