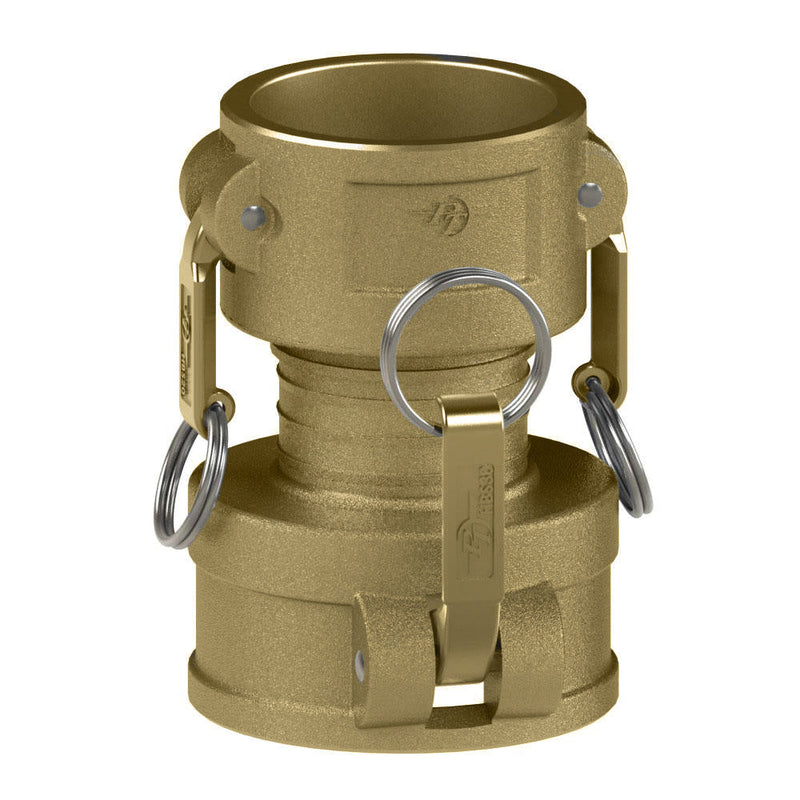

62271515 (15CX15C) by PT-Coupling | Cam & Groove Adapter | Spool Coupler | Type CXC | 1-1/2" Coupler x 1-1/2" Coupler | Brass/HB | Buna-N Seal

62271515 (15CX15C) by PT-Coupling | Cam & Groove Coupler | Spool Coupler | Type CXC | 1-1/2" Coupler x 1-1/2" Coupler | Brass/HB | Buna-N Seal

Save $71.47

$192.55

$192.55 - $192.55

$192.55

$121.08

$121.08 - $121.08

$121.08

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 62271515 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Other
Ends Configuration:	1-1/2in Female Cam & Groove, 1-1/2in Female Cam & Groove, Some Ends Match
Material(s):	Brass
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
HB cam arms are made of Brass. Good corrosion resistance, less expensive than stainless steel. Softer and easier to thread than stainless steel and forms tight seals. Ideal for use with water. Can also be used with hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA

Part Name	Item #	Coupler Size	Coupler Size	Max. Allowable Working Press. (PSI)*
10CX10C	62271010	1"	1"	250 PSI
15CX15C	62271515	1-1/2"	1-1/2"	250 PSI
20CX20C	62272020	2"	2"	250 PSI
30CX20C	62273020	3"	2"	200 PSI
30CX30C	62273030	3"	3"	200 PSI
40CX30C	62274030	4"	3"	150 PSI
40CX40C	62274040	4"	4"	150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
