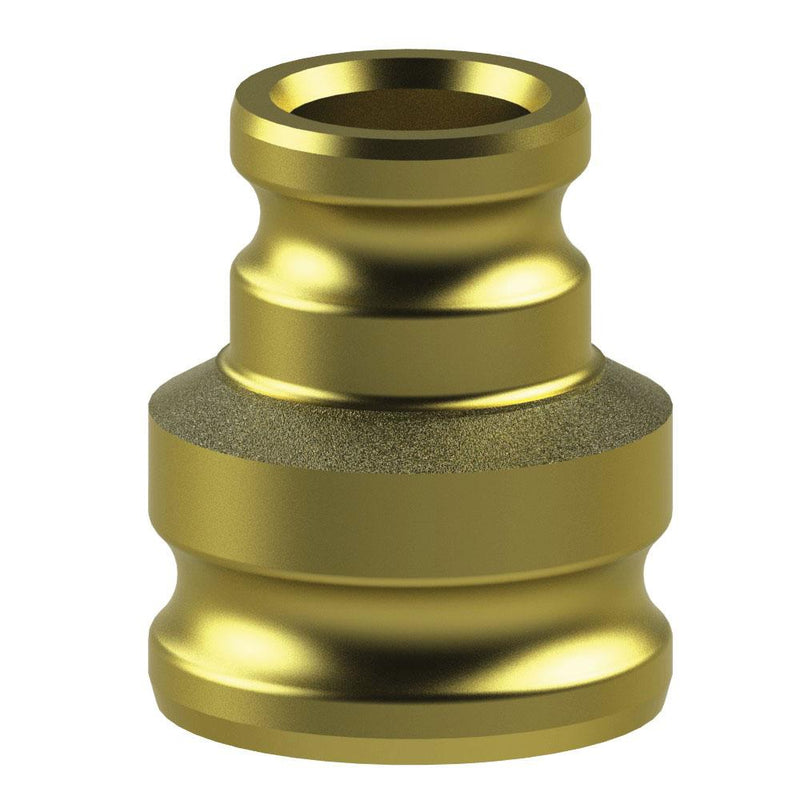

62282030 (SA20X30) by PT-Coupling | Reducing Cam & Groove Adapter | Spool Adapter | Type SA | 2" Adapter x 3" Adapter | Brass

Save $102.87

$277.12

$277.12 - $277.12

$277.12

$174.25

$174.25 - $174.25

$174.25

PT Coupling
Cam & Groove (Camlock) Adapter | Spool Adapter | Type SA | Adapter x Adapter | Brass

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 62282030 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Other
Ends Configuration:	2in Male Cam & Groove, 3in Male Cam & Groove
Material(s):	Brass

Features & Applications:
Good corrosion resistance, less expensive than stainless steel. Softer and easier to thread than stainless steel and forms tight seals. Ideal for use with water. Can also be used with hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA

Part Name	Item #	Adapter Size	Adapter Size	Max. Allowable Working Press. (PSI)*
SA10X10	62281010	1"	1"	250 PSI
SA15X15	62281515	1-1/2"	1-1/2"	250 PSI
SA20X20	62282020	2"	2"	250 PSI
SA20X30	62282030	2"	3"	200 PSI
SA25X25	62282525	2-1/2"	2-1/2"	200 PSI
SA30X30	62283030	3"	3"	200 PSI
SA30X40	62283040	3"	4"	150 PSI
SA40X40	62284040	4"	4"	150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
