62310-1/2"-3/4" AIGNEP | 60/62 Series | Reducing Female Coupler | 1/2" BSPP Female x 3/4" BSPP Female
62310-1/2"-3/4 by AIGNEP | 60/62 Series | Reducing Female Coupler | 1/2" BSPP Female x 3/4" BSPP Female
62310-1/2"-3/4" AIGNEP | 60/62 Series | Reducing Female Coupler | 1/2" BSPP Female x 3/4" BSPP Female

62310-1/2"-3/4 by AIGNEP | 60/62 Series | Reducing Female Coupler | 1/2" BSPP Female x 3/4" BSPP Female

Save $10.11 Save $10.11
$33.79
$33.79 - $33.79
$33.79
$23.68
$23.68 - $23.68
$23.68
Specifications for Variant SKU: 62310-1/2-3/4 AIGNEP
Series: 60/62 Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Female BSPP, 3/4in Female BSPP
Material(s): Stainless Steel

Reducer Coupler - BSPP

Pressure Rating: Vacuum-250 PSI
Temperature Range: -166 ° F - 572 ° F
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel

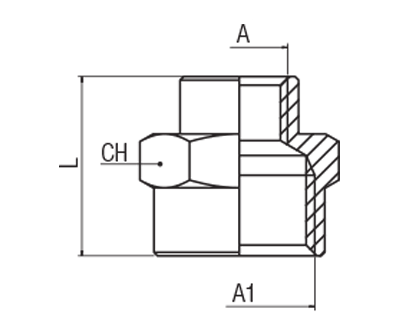

Product Number A BSPP A1 BSPP L CH
62310-1/8-1/4 1/8" 1/4" 19 mm 17 mm
62310-1/4-3/8 1/4" 3/8" 23 mm 22 mm
62310-3/8-1/2 3/8" 1/2" 27.5 mm 24 mm
62310-1/2-3/4 1/2" 3/4" 30 mm 30 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
