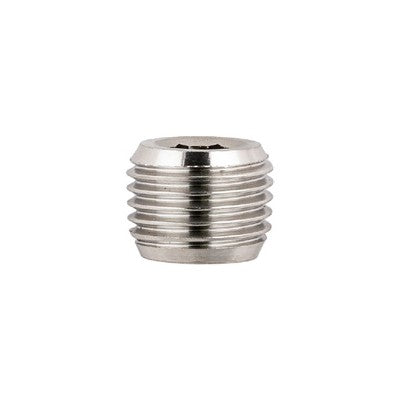

62325-3/8" AIGNEP | 60/62 Series | Stainless Steel Male Plug | Internal Hex | DIN 906 | 3/8" BSPT

62325-3/8 by AIGNEP | 60/62 Series | Male Plug | Internal Hex | DIN 906 | 3/8" BSPT | Stainless Steel

Save $6.91

$18.15

$18.15 - $18.15

$18.15

$11.24

$11.24 - $11.24

$11.24

Specifications for Variant SKU: 62325-3/8 AIGNEP
Series:	60/62 Series
Ends Configuration:	3/8in Male BSPT
Material(s):	Stainless Steel

Male Plug - DIN 906

Pressure Rating: Vacuum-250 PSI
Temperature Range: -166 ° F - 572 ° F
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel

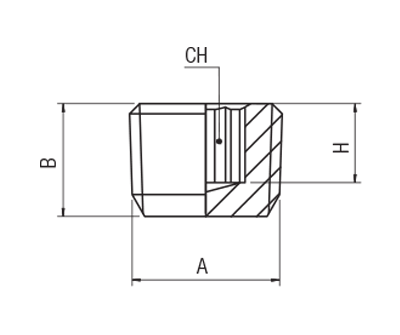

Product Number	A BSPT	B	H	CH
62325-1/8	1/8"	7.5 mm	5 mm	5 mm
62325-1/4	1/4"	10 mm	7 mm	6 mm
62325-3/8	3/8"	11 mm	7 mm	8 mm
62325-1/2	1/2"	13 mm	8 mm	10 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
