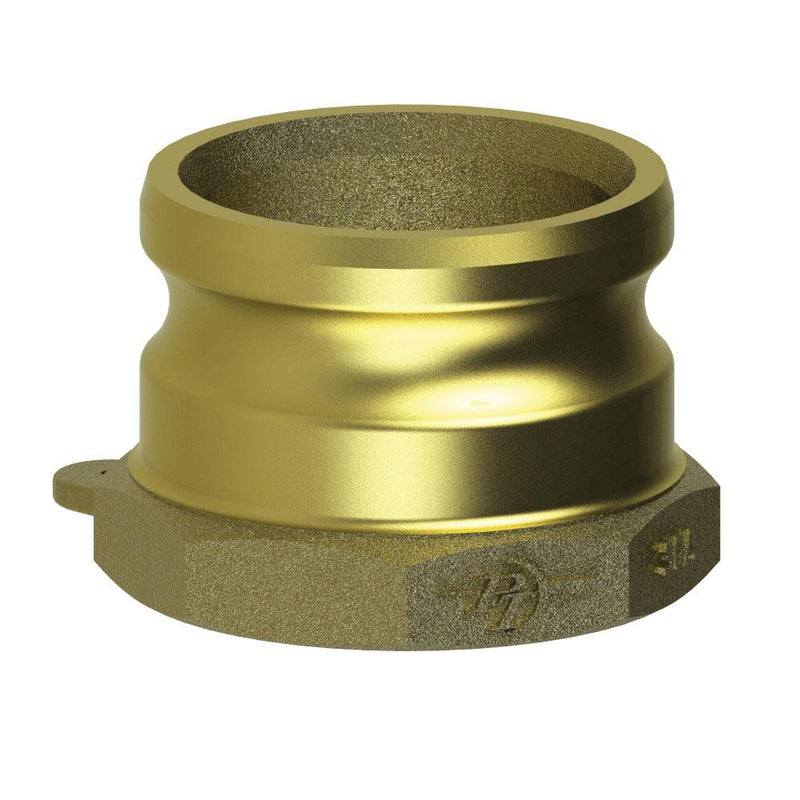

62341500 (15AS) by PT-Coupling | Cam & Groove Adapter | Type AS | 1-1/2" Adapter x 1-1/2" Female NPSH | Brass | Buna Fuel Resistant Seal

Save $34.00

$91.60

$91.60 - $91.60

$91.60

$57.60

$57.60 - $57.60

$57.60

PT Coupling
Cam & Groove (Camlock) Adapter | Type AS | Adapter x Female NPSH | Brass | Buna Fuel Resistant Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 62341500 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type A
Ends Configuration:	1-1/2in Male Cam & Groove, 1-1/2in Female NPSH
Material(s):	Brass
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
Female straight pipe threads are compatible with male NPSH, NPSM and NPT threads. Comes standard with a Buna Fuel Resistant straight thread gasket. Good corrosion resistance, less expensive than stainless steel. Softer and easier to thread than stainless steel and forms tight seals. Ideal for use with water. Can also be used with hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA


Part Name	Item #	Adapter Size	Female NPSH Thread	Overall Length (C)	Inside Diameter (E)	Across Corners (F)	Chain Lug Extension (G)	Max. Allowable Working Press. (PSI)*
15AS	62341500	1-1/2"	1-1/2"	2.29"	1.35"	2.44"	0.33"	250 PSI
30AS	62343000	3"	3"	2.84"	2.80"	4.22"	0.44"	200 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
