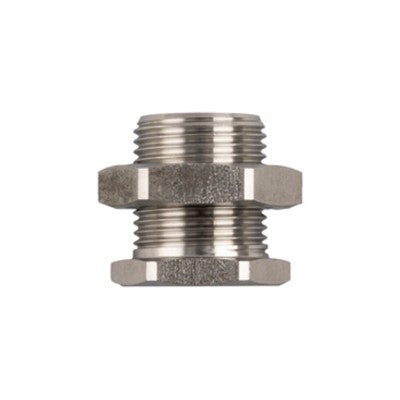

62360-1/4" AIGNEP | 60/62 Series | Bulkhead Connector | 1/4" Female BSPP x 0.807" Male BSPP

62360-1/4 by AIGNEP | 60/62 Series | Bulkhead Connector | 1/4" Female BSPP x 0.807" Male BSPP

Name: 62360-1/4 by AIGNEP | 60/62 Series | Bulkhead Connector | 1/4" Female BSPP x 0.807" Male BSPP
Brand: AIGNEP
SKU: 62360-1/4 AIGNEP
Price: 19.54 USD
Availability: InStock

Save $0.19

$19.73

$19.73 - $19.73

$19.73

$19.54

$19.54 - $19.54

$19.54

Quantity

Specifications for Variant SKU: 62360-1/4 AIGNEP
Series:	60/62 Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Female BSPP, 1/4in Male BSPP
Material(s):	Stainless Steel

Bulkhead Connector - BSPP

Pressure Rating: Vacuum-250 PSI
Temperature Range: -166 ? F - 572 ? F
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel

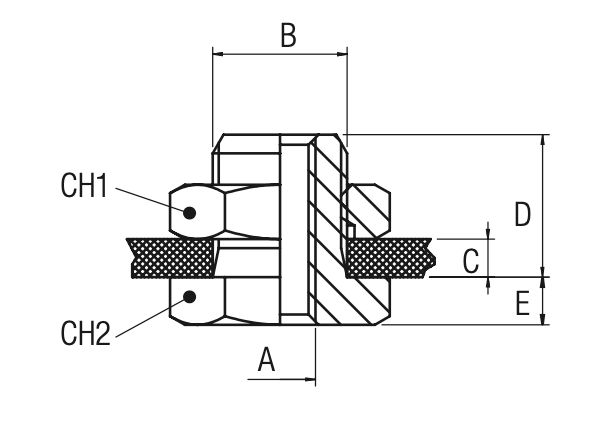

Product Number	A	B	C	CH1	CH2	D	E
62360-1/8	1/8"	16.5 mm	9 mm	19 mm	22 mm	14 mm	4 mm
62360-1/4	1/4"	20.5 mm	15 mm	24 mm	27 mm	21 mm	4 mm
62360-3/8	3/8"	26.5 mm	14 mm	30 mm	32 mm	21 mm	5 mm
62360-1/2	1/2"	28.5 mm	20 mm	32 mm	36 mm	27 mm	6 mm
62360-3/4	3/4"	34 mm	22.5 mm	41 mm	41 mm	30 mm	6 mm
62360-1	1"	42.5 mm	24.5 mm	46 mm	50 mm	34 mm	8 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
