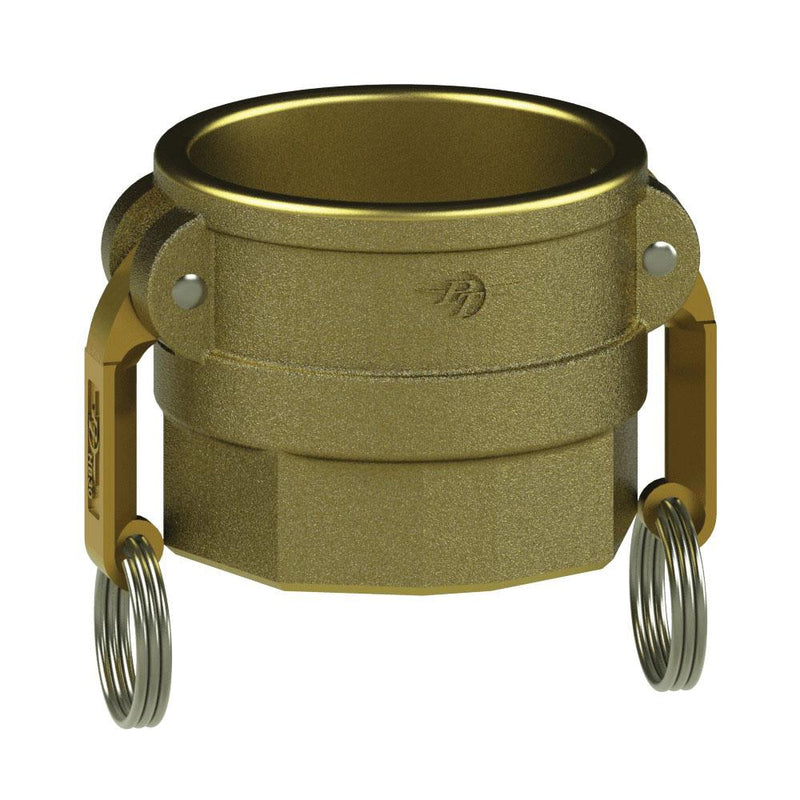

62392500 (25DFH) by PT-Coupling | Cam & Groove Adapter | Type DFH | 2-1/2" Coupler x 2-1/2" Female Fire Hose (NH) Thread | Brass | EPDM & Buna-N Seals

Name: 62392500 (25DFH) by PT-Coupling | Cam & Groove Adapter | Type DFH | 2-1/2" Coupler x 2-1/2" Female Fire Hose (NH) Thread | Brass | EPDM & Buna-N Seals
Brand: PT-Coupling
SKU: 62392500 PT-Coupling
Price: 175.28 USD
Availability: InStock

Save $103.47

$278.75

$278.75 - $278.75

$278.75

$175.28

$175.28 - $175.28

$175.28

PT Coupling
Cam & Groove (Camlock) Adapter | Type DFH | Coupler x Female Fire Hose (NH) Thread | Brass | EPDM & Buna-N Seals

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 62392500 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type B
Ends Configuration:	2-1/2in Female Cam & Groove, 2-1/2in Female NST
Material(s):	Brass
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
Good corrosion resistance, less expensive than stainless steel. Softer and easier to thread than stainless steel and forms tight seals. Ideal for use with water. Can also be used with hydraulic oil, coolants, gasoline, and petroleum products. Comes standard with EPDM NH Thread Gasket and Buna-N cam gasket. Made in the USA


Part Name	Item #	Coupler Size	Female Fire Hose Thread (NH) Size	O. D. with Cam Arms Extended (A)	Outside Diameter (B)	Overall Length (C)	Inside Diameter (E)	Max. Allowable Working Press. (PSI)*
25DFH	62392500	2-1/2"	2-1/2"	8.03"	4.43"	3.40"	2.38"	200 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
