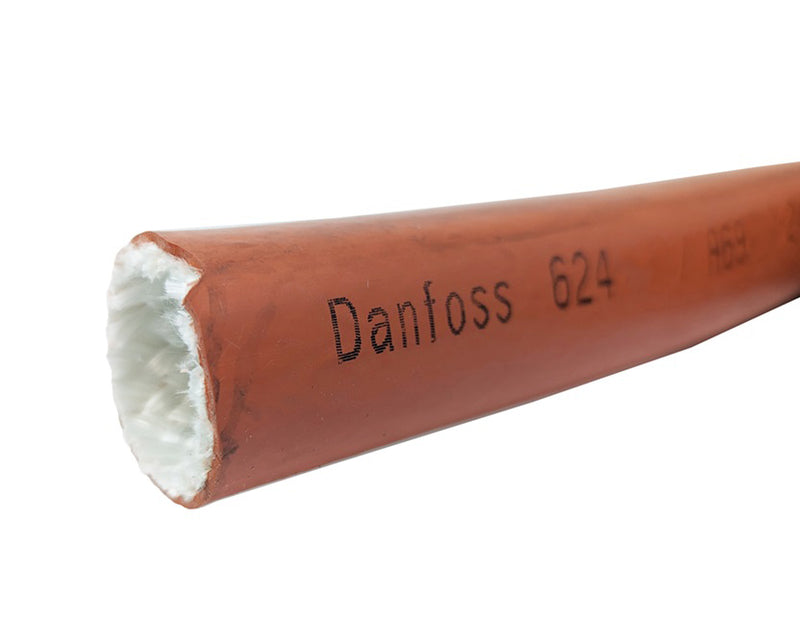

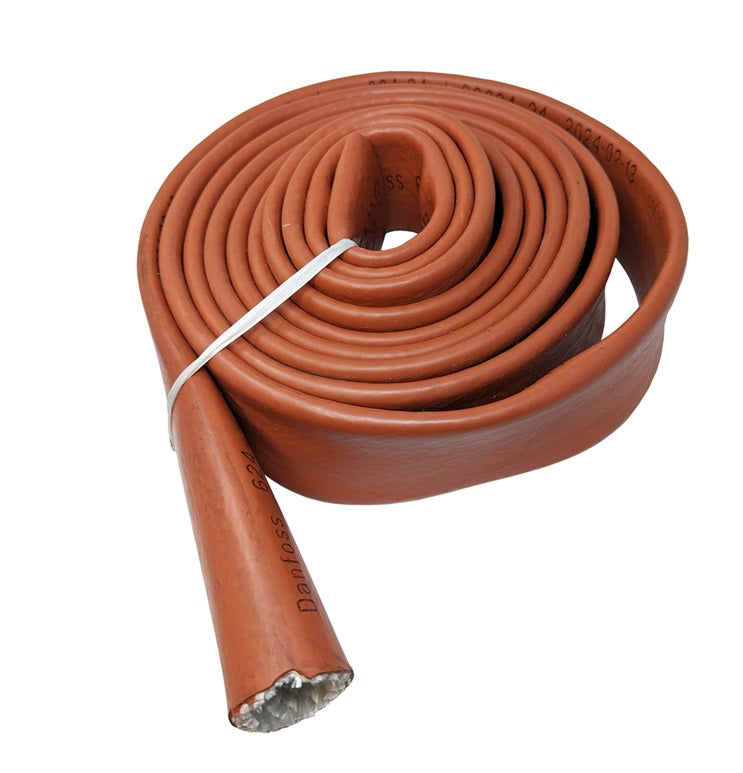

624-5 Aeroquip by Danfoss | Firesleeve Protective Cover | .31" I.D.

Name: 624-5 Aeroquip by Danfoss | Firesleeve Protective Cover | .31" I.D.
Brand: Danfoss/Eaton
SKU: 624-5 Danfoss
Price: 11.8 USD
Availability: InStock

$11.80 - $11.80

$11.80

$11.80 - $11.80

$11.80

Firesleeve

Accessories - Protective Sleeves

Firesleeve will protect hose from direct flame. Firesleeve is constructed of a uniform single layer of braided fiberglass tubing impregnated with flame resistant silicone rubber. Temperature range of -65°F to +500°F

For exact length pricing please email: support@murdockindustrial.com

Quantity

Specifications for Variant SKU: 624-5 Danfoss

Part No.	I.D.		Clamp #
	mm	in	(2 Required)
624-5	7,9	.31	FF9217-0622S
624-7	11,2	.44	FF9217-0622S
624-8	12,7	.50	FF9217-0622S
624-9	14,2	.56	FF9217-0622S
624-10	15,7	.62	FF9217-0622S
624-11	17,5	.69	FF9217-0622S
624-12	19,0	.75	FF9217-0622S
624-13	20,6	.81	FF9217-0622S
624-14	22,3	.88	FF9217-0622S
624-16	25,4	1.00	FF9217-0622S
624-18	28,4	1.12	FF9217-0622S
624-20	31,7	1.25	FF9217-0648S
624-22	35,0	1.38	FF9217-0648S
624-24	38,1	1.50	FF9217-0648S
624-26	41,1	1.62	FF9217-0648S
624-28	44,4	1.75	FF9217-0648S
624-30	47,7	1.88	FF9217-0648S
624-32	50,8	2.00	FF9217-0648S
624-38	60,4	2.38	FF9217-0648S
624-42	66,5	2.62	FF9217-0648S
624-46	73,1	2.88	FF9217-0664C
624-50	79,2	3.12	FF9217-0664C
624-54	85,8	2.88	FF9217-0664C
624-60	95,2	3.75	FF9217-0664C

Check the chart for use with hose: Accessories to Hose Chart

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
