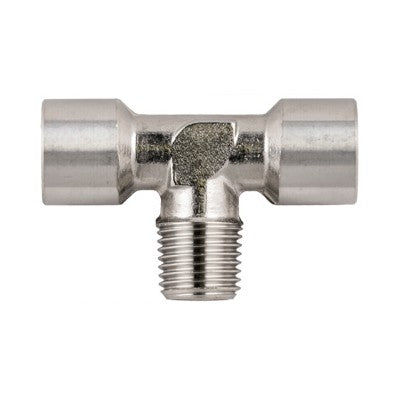

62440-1/4" AIGNEP | 60/62 Series | Female Tee with Male Branch | 1/4" Male BSPT x 1/4" Female BSPP

62440-1/4 by AIGNEP | 60/62 Series | Female with Male Branch | 1/4" Male BSPT x 1/4" Female BSPP | Tee | Stainless Steel

Save $19.37

$48.42

$48.42 - $48.42

$48.42

$29.05

$29.05 - $29.05

$29.05

Specifications for Variant SKU: 62440-1/4 AIGNEP
Series:	60/62 Series
Shape (Orientation):	Tee
Ends Configuration:	1/4in Male BSPT, 1/4in Female BSPT, 1/4in Female BSPT, Some Ends Match
Material(s):	Stainless Steel

Male Tee - BSPP x BSPT

Pressure Rating: Vacuum-250 PSI
Temperature Range: -166 ? F - 572 ? F
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel

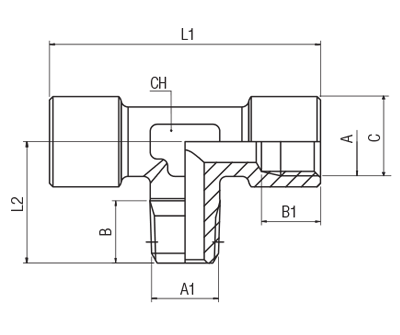

Product Number	A BSPP	A1 BSPT	B	B1	C	L1	L2	CH
62440-1/8	1/8"	1/8"	7.5 mm	8.5 mm	17.5 mm	37 mm	17.5 mm	12 mm
62440-1/4	1/4"	1/4"	11 mm	11 mm	23 mm	49 mm	23 mm	12 mm
62440-3/8	3/8"	3/8"	11.5 mm	12 mm	25.5 mm	54 mm	25.5 mm	15 mm
62440-1/2	1/2"	1/2"	14 mm	15 mm	29.5 mm	64 mm	29.5 mm	20 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
