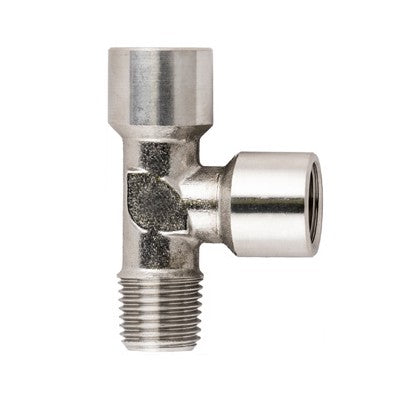

62450-1/8 by AIGNEP | 60/62 Series | Female Run | 2x Female BSPP x 1 Male BSPT 1/8" | Tee | Stainless Steel

Save $13.83 Save $13.83
Original price $34.57
Original price $34.57 - Original price $34.57
Original price $34.57
Current price $20.74
$20.74 - $20.74
Current price $20.74
Specifications for Variant SKU: 62450-1/8 AIGNEP
Series: 60/62 Series
Shape (Orientation): Tee
Ends Configuration: 1/8in Female BSPT, 1/8in Male BSPT, 1/8in Female BSPT, Some Ends Match
Material(s): Stainless Steel

Female Run Tee - BSPP x BSPT

Pressure Rating: Vacuum-250 PSI
Temperature Range: -166 ° F - 572 ° F
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel

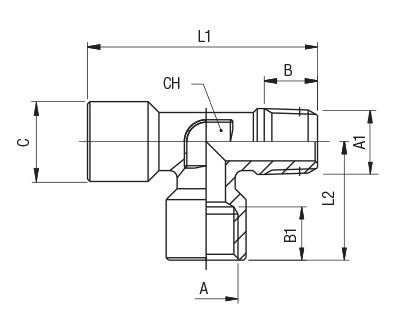

Product Number A BSPP A1 BSPT B B1 C L1 L2 CH
62450-1/8 1/8" 1/8" 7.5 mm 8.5 mm 18.5 mm 36 mm 18.5 mm 12 mm
62450-1/4 1/4" 1/4" 11 mm 11 mm 24.5 mm 47.5 mm 24.5 mm 12 mm
62450-3/8 3/8" 3/8" 11.5 mm 12 mm 27 mm 52.5 mm 27 mm 15 mm
62450-1/2 1/2" 1/2" 14 mm 15 mm 32 mm 61.5 mm 32 mm 20 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
