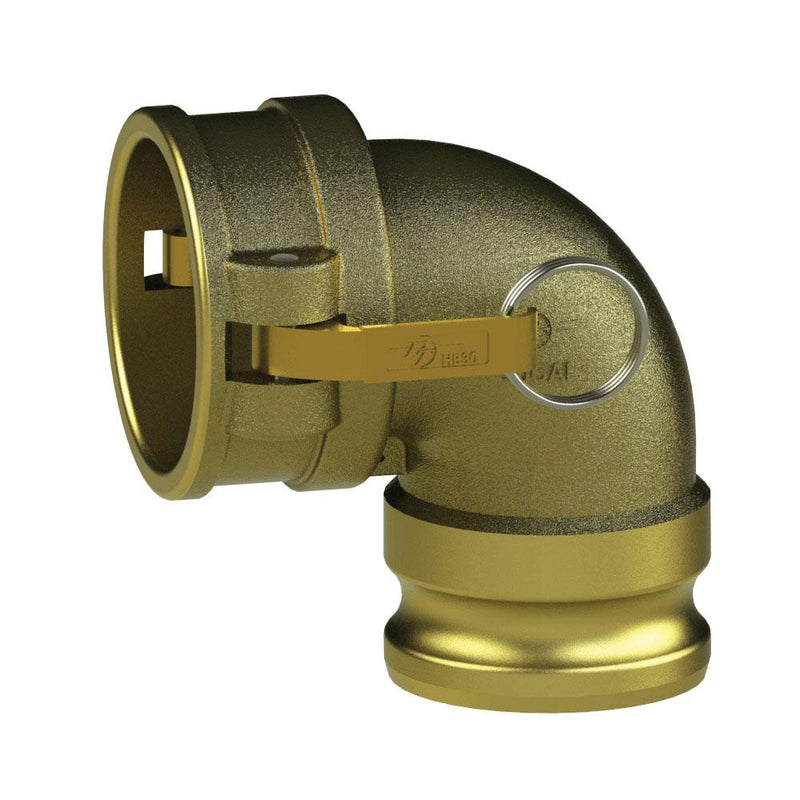

62504140 (40CAL) by PT-Coupling | Cam & Groove Adapter | Type CAL | 90° Elbow | 4" Coupler x 4" Adapter | Brass | Buna-N Seal

62504140 (40CAL) by PT-Coupling | Cam & Groove Coupler | Type CAL | 90° Elbow | 4" Coupler x 4" Adapter | Brass | Buna-N Seal

Save $292.63

$788.32

$788.32 - $788.32

$788.32

$495.69

$495.69 - $495.69

$495.69

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 62504140 PT-Coupling
Shape (Orientation):	90 Degree Elbow
Cam Type:	Other
Ends Configuration:	4in Female Cam & Groove, 4in Male Cam & Groove
Material(s):	Brass
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
Good corrosion resistance, less expensive than stainless steel. Softer and easier to thread than stainless steel and forms tight seals. Ideal for use with water. Can also be used with hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA

Part Name	Item #	Orientation	Coupler Size	Adapter Size	Max. Allowable Working Press. (PSI)*
20CAL	62502120	90°	2"	2"	250 PSI
30CAL	62503130	90°	3"	3"	200 PSI
30CAL-45 Deg	62503131	45°	3"	3"	200 PSI
40CAL	62504140	90°	4"	4"	150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
