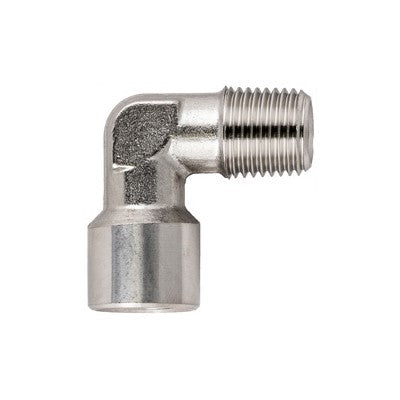

62520-1/4" AIGNEP | 60/62 Series | Male x Female 90° Elbow | 1/4" BSPP Female x 1/4" BSPT Male

62520-1/4 by AIGNEP | 60/62 Series | 1/4" BSPP Female x 1/4" BSPT Male | 90° Elbow

Name: 62520-1/4 by AIGNEP | 60/62 Series | 1/4" BSPP Female x 1/4" BSPT Male | 90° Elbow
Brand: AIGNEP
SKU: 62520-1/4 AIGNEP
Price: 30.81 USD
Availability: InStock

Save $11.81

$42.62

$42.62 - $42.62

$42.62

$30.81

$30.81 - $30.81

$30.81

Specifications for Variant SKU: 62520-1/4 AIGNEP
Series:	60/62 Series
Shape (Orientation):	90 Degree
Ends Configuration:	1/4in Female BSPP, 1/4in Male BSPT
Material(s):	Stainless Steel

Male x Female Elbow - BSPP x BSPT

Pressure Rating: Vacuum-250 PSI
Temperature Range: -166 ? F - 572 ? F
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel

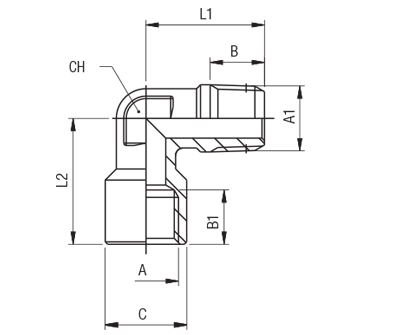

Product Number	A BSPP	A1 BSPT	B	B1	C	L1	L2	CH
62520-1/8	1/8"	1/8"	7.5 mm	8.5 mm	21 mm	18 mm	21 mm	10 mm
62520-1/4	1/4"	1/4"	11 mm	11 mm	25.5 mm	24 mm	25.5 mm	12 mm
62520-3/8	3/8"	3/8"	11.5 mm	12 mm	28 mm	27 mm	28 mm	15 mm
62520-1/2	1/2"	1/2"	14 mm	15 mm	32 mm	29.5 mm	32 mm	20 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
