62540-1/8" AIGNEP | 60/62 Series | Stainless Steel Breather Vent | 1/8" BSPP
62540-1/8 by AIGNEP | 60/62 Series | Breather Vent | 1/8" BSPP | Stainless Steel
62540-1/8" AIGNEP | 60/62 Series | Stainless Steel Breather Vent | 1/8" BSPP

62540-1/8 by AIGNEP | 60/62 Series | Breather Vent | 1/8" BSPP | Stainless Steel

Save $7.66 Save $7.66
$21.90
$21.90 - $21.90
$21.90
$14.24
$14.24 - $14.24
$14.24
Specifications for Variant SKU: 62540-1/8 AIGNEP
Series: 60/62 Series
Shape (Orientation): Straight
Ends Configuration: 1/8in Male BSPP
Material(s): Stainless Steel

Breather Vent - BSPP

Pressure Rating: Vacuum-250 PSI
Temperature Range: -166 ° F - 572 ° F
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel

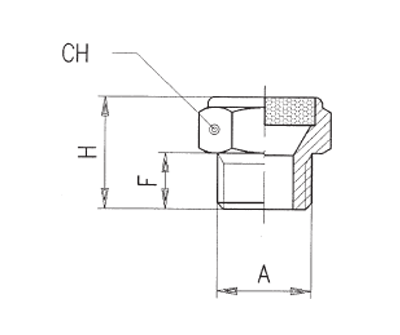

Product Number A BSPP F H CH
62540-1/8 1/8" 8 mm 15 mm 14 mm
62540-1/4 1/4" 8 mm 15 mm 17 mm
62540-3/8 3/8" 10 mm 18 mm 22 mm
62540-1/2 1/2" 12 mm 22 mm 27 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
