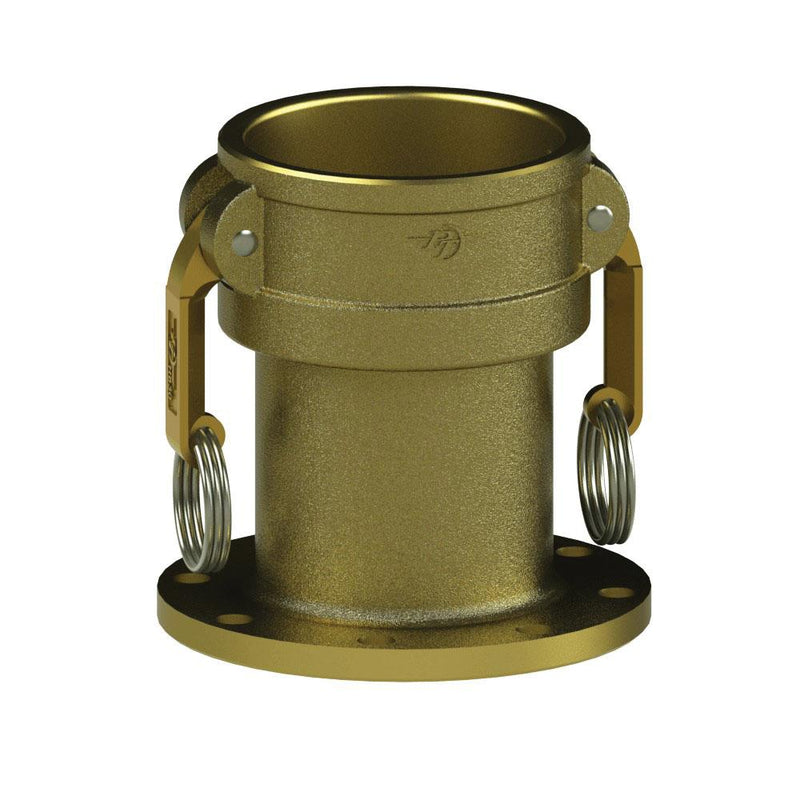

62584000 (TTF40C) by PT-Coupling | Petroleum Handling Cam & Groove Adapter | Type TTFC | 4" Coupler x 4" TTMA Flange | Brass

62584000 (TTF40C) by PT-Coupling | Petroleum Handling Cam & Groove Adapter | Type TTFC | 4" Coupler x 4" TTMA Flange | Brass

Save $240.09 Save $240.09
$646.80
$646.80 - $646.80
$646.80
$406.71
$406.71 - $406.71
$406.71

PT Coupling
Petroleum Handling Cam & Groove (Camlock) Adapter | Type TTFC | Coupler x TTMA Flange | Brass

PT Coupling’s petroleum handling fittings support all stages of fuel production and transport, from refining to tank trucks. Also compatible with bio-fuel applications.

Made in the USA.
Specifications for Variant SKU: 62584000 PT-Coupling
Series: Petroleum Handling
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 4in Female Cam & Groove, 4in TTMA Flange
Material(s): Brass
Overview:
  • PT Coupling's petroleum handling fittings are used in all phases of petroleum manufacturing, transportation and logistics. They serve important roles in fuel transportation, from refining applications to tank trucks, and much more. They are also suited to work with the emerging bio-fuel industry.
Features & Applications:
  • Tank Truck Flanges conform to (TTMA) Truck Trailer Manufacturers Assoc. standards.
  • Good corrosion resistance, less expensive than stainless steel. Softer and easier to thread than stainless steel and forms tight seals.
  • Ideal for use with water. Can also be used with hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
Part
Name		 Item # Coupler
Size		 Flange
Size
(TTMA)		 O. D. with
Cam Arms
Extended
(A)		 Overall
Length
(C)		 Inside
Diameter
(E)		 Outside
Diameter
(F)		 Bolt Hole
Diameter
(J)		 Number
of Holes
(K)		 Bolt Circle
Diameter
(L)		 Max. Allowable
Working Press.
(PSI)*
TTF30X40C 62583040 3" 4" 9.56" 5.66" 2.90" 5.63" 0.44" 8 4.88" 150 PSI
TTF40C 62584000 4" 4" 10.66" 5.68" 3.60" 6.63" 0.44" 8 5.88" 150 PSI

* Above maximum allowable working pressures are based on operating temperatures less than 100°F.
