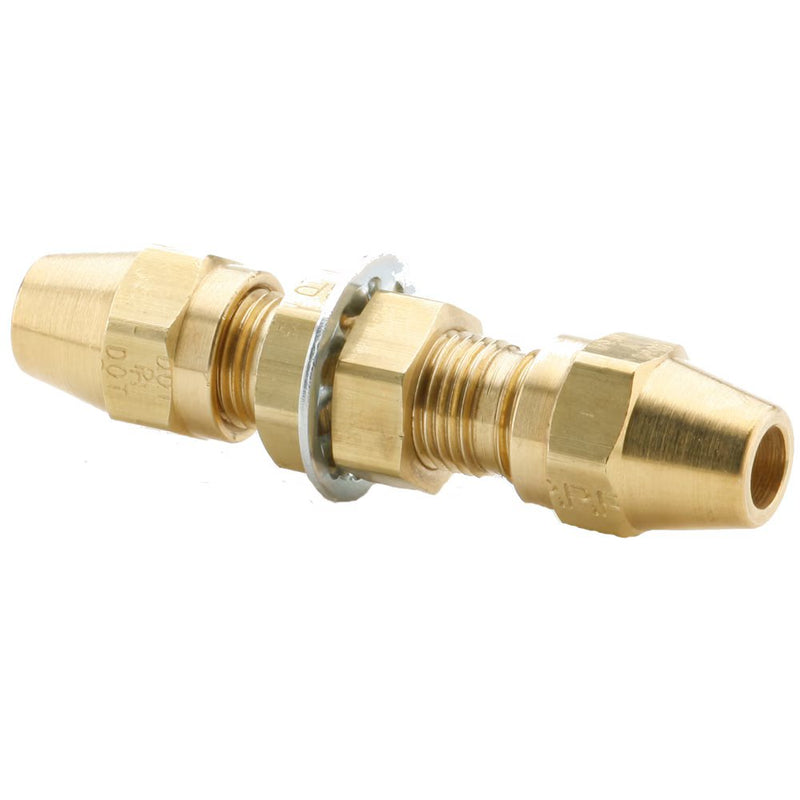

62ABH-6 by Parker | Air Brake - AB Fittings | Bulkhead Union | 3/8" Tube Size x 17/32" Thread | 3/4" Hex | 3.41" Length | Straight | Brass | Pack of 25

Save $545.01

$1,362.53

$1,362.53 - $1,362.53

$1,362.53

$817.52

$817.52 - $817.52

$817.52

by Parker Hannifin
Air Brake – AB Fittings:Bulkhead Union 62ABH

Package Quantity: 25 Units

Specifications for Variant SKU: 62ABH-6 Parker \| 25 \|
Series:	62ABH Series
Shape (Orientation):	Straight
Material(s):	Brass
Special Properties:	Fuel Grade, Reuseable

Specification:
Product Features:	Brass Body Meets D.O.T. FMVSS571.106 Performance Meets functional Requirements SAE J246 Reusable Pre-applied Thread Sealant
Markets:	Heavy Duty Truck Trailer Mobile
Applications:	Copper Air Brake Lines Coolant Lines Fuel Lines
Pressure Range:	Up to 400 PSI (27.5 bar)
Temperature Range:	-65° to +250° F (-53.8° to +121.1° C)
Compatible Tubing:	Copper Air Brake Tubing


Part Number	Tube Size	Straight Thread	Hex (C)	L	M	Flow Diameter (D)	Bulkhead Hole Diameter
62ABH-4	1/4"	7/16"-24	9/16"	2.53"	1.38"	.188"	7/16"
62ABH-6	3/8"	17/32"-24	3/4"	3.41"	1.62"	.314"	17/32"
62ABH-8	1/2"	11/16"-20	1"	3.80"	1.88"	.408"	11/16"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
