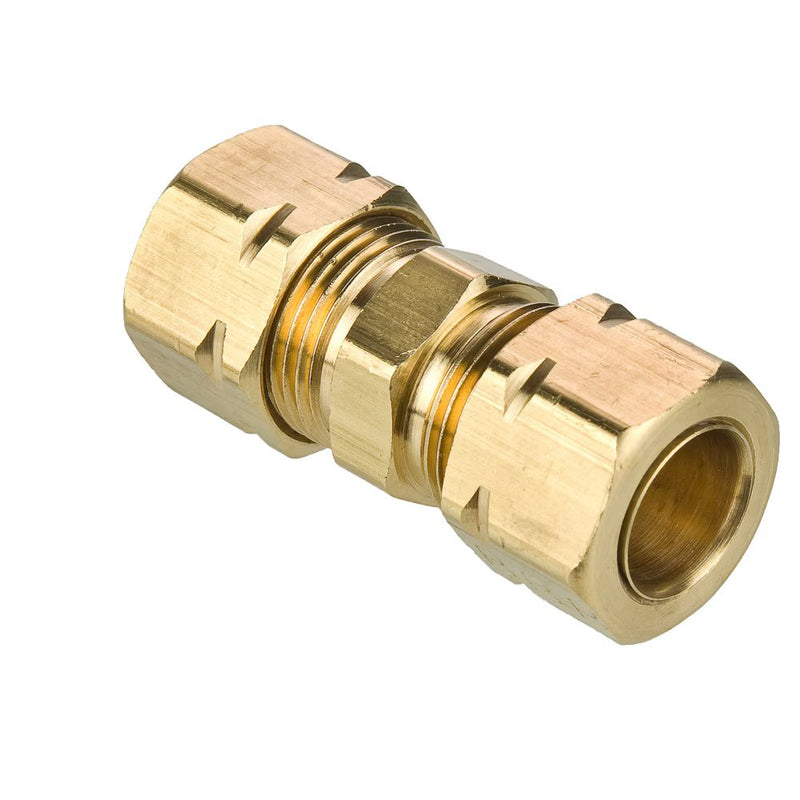

62CA-2 by Parker | Compress-Align® Fittings | Union | 1/8" Tube Size x 5/16" Thread | 5/16" Hex | 1.12" Length | Straight | Brass | Pack of 25

62CA-2 by Parker | Compress-Align® Fittings | Union | 1/8" Tube Size x 5/16" Thread | 5/16" Hex | 1.12" Length | Straight | Brass | Pack of 25

Save $101.05 Save $101.05
$252.63
$252.63 - $252.63
$252.63
$151.58
$151.58 - $151.58
$151.58

by Parker Hannifin
Compress-Align® Fittings:Union 62CA

Package Quantity: 25 Units

Specifications for Variant SKU: 62CA-2 Parker | 25 |
Brand: Compress-Align
Series: 62CA Series
Shape (Orientation): Straight
Material(s): Brass
Product Features:
  • Self-aligning captive sleeve
  • 2-piece fitting – Less inventory
  • Visible inspection before and after installation
  • 1/8” – 1” Sizes
  • No flaring, soldering or other tube preparation
  • Forged and extruded shapes
Markets:
  • Industrial
  • Packaging
  • Pneumatic
  • Printing
  • Chemical
Applications:
  • Air lines
  • Lubrication Lines
  • Cooling lines
  • Industry
  • Machinery
  • Chemical Dispensing
  • Compressors
  • Fluid transfer
Specification:
Pressure Range: See Chart Below
Temperature Range: -65° to +250° F (- 53.8° to +121.1° C)
Compatible Tubing:
  • Copper
  • Aluminum
  • Thermoplastic tubing
  • TFE, FEA, PFA
Part Number Tube Size Straight Thread Hex (C) L M Flow Diameter (D)
62CA-2 1/8" 5/16"-24 5/16" 1.12" .64" .094"
62CA-3 3/16" 3/8"-24 3/8" 1.19" .72" .125"
62CA-4 1/4" 7/16"-24 7/16" 1.26" .79" .188"
62CA-5 5/16" 1/2"-24 1/2" 1.32" .85" .250"
62CA-6 3/8" 9/16"-24 9/16" 1.42" .97" .312"
62CA-8 1/2" 11/16"-20 11/16" 1.53" 1.08" .406"
62CA-10 5/8" 13/16"-18 13/16" 1.71" 1.23" .500"
62CA-12 3/4" 1"-18 1" 2.20" 1.41" .562"
62CA-14 7/8" 1-1/8"-18 1-1/8" 2.08" 1.19" .766"
