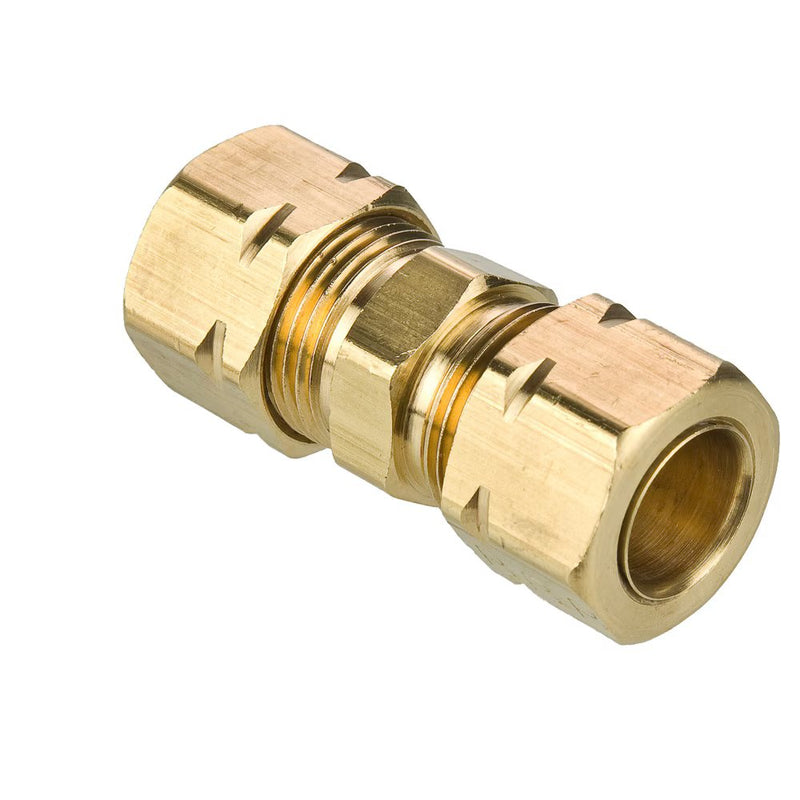

62CA-6-4 by Parker | Compress-Align® Fittings | Union | 1/4" x 3/8" Tube Size x 7/16" x 9/16" Thread | 9/16" Hex | 1.37" Length | Straight | Brass | Pack of 10

62CA-6-4 by Parker | Compress-Align® Fittings | Union | 1/4" x 3/8" Tube Size x 7/16" x 9/16" Thread | 9/16" Hex | 1.37" Length | Straight | Brass | Pack of 10

Save $11.33 Save $11.33
$124.67
$124.67 - $124.67
$124.67
$113.34
$113.34 - $113.34
$113.34

by Parker Hannifin
Compress-Align® Fittings:Union Reducers 62CA

Package Quantity: 10 Units

Specifications for Variant SKU: 62CA-6-4 Parker | 10 |
Brand: Compress-Align
Series: 62CA Series
Shape (Orientation): Straight
Material(s): Brass
Product Features:
  • Self-aligning captive sleeve
  • 2-piece fitting – Less inventory
  • Visible inspection before and after installation
  • 1/8” – 1” Sizes
  • No flaring, soldering or other tube preparation
  • Forged and extruded shapes
Markets:
  • Industrial
  • Packaging
  • Pneumatic
  • Printing
  • Chemical
Applications:
  • Air lines
  • Lubrication Lines
  • Cooling lines
  • Industry
  • Machinery
  • Chemical Dispensing
  • Compressors
  • Fluid transfer
Specification:
Pressure Range: See Chart Below
Temperature Range: -65° to +250° F (- 53.8° to +121.1° C)
Compatible Tubing:
  • Copper
  • Aluminum
  • Thermoplastic tubing
  • TFE, FEA, PFA
Part Number Tube Size 1 Tube Size 2 Tube Size 3 Straight Thread 1 Straight Thread 2 Hex (C) L M Flow Diameter (D)
62CA-4-3 3/16" 1/4" 3/8"-24 7/16"-24 7/16" 1.25 .78" .125"
62CA-6-4 1/4" 3/8" 7/16"-24 9/16"-24 9/16" 1.37 .91" .188"
62CA-8-6 1/2" 3/8" 9/16"-24 11/16"-24 11/16" 1.48 1.03" .312"
62CA-10-6 3/8" 5/8" 9/16"-24 13/16"-24 13/16" 1.59 1.13" .312"
